无刷电动机主要技术参数 Motor Technical Data
电机型号 TYPE | 极数 Number of poles | 相数 Number of phase | 额定电压 Rated voltage VDC | 空载转速 No-load speed r/min | 额定转速 Rated speed r/min | 额定转矩 Rated torque mN.m | 额定电流 Rated current A | 输出功率 Output power W |
42ZWNP66-2430 | 10 | 3 | 24 | 3000 | 2550 | 80 | 1.1 | 21 |
无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
配置42ZWNP66-2430无刷直流电机(42ZWNP66-2430 BLDC Motor)
减速比 Reduction ratio | 3.5 | 14 | 21 | 49 | 84 | 104 | 126 | 156 | 172 | 196 | 212 | 294 |
减速级数 Number of gear trains | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
减速器长度(L) Length(L) mm | 32.5 | 39.2 | 39.2 | 46 | 46 | 46 | 46 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
空载速度 No-load speed r/min | 857 | 214 | 143 | 61 | 36 | 29 | 24 | 19 | 17 | 15 | 14 | 10 |
额定转速 Rated speed rAnin | 728 | 182 | 121 | 52 | 30 | 24 | 20 | 16 | 15 | 13 | 12 | 8 |
额定转矩 Rated torque N.m | 0.25 | 0.9 | 1.3 | 2.8 | 4.9 | 6.0 | 7.3 | 8.2 | 9.0 | 10.3 | 11.2 | 15.6 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 3 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 |

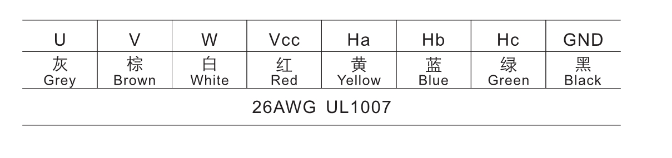

接线方式 Wire Diagram
