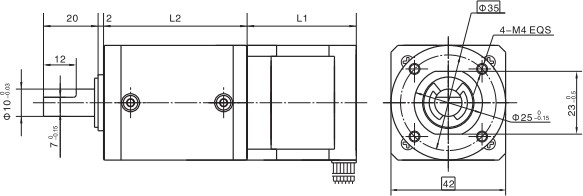

行星齿轮减速器 Planetary Gearbox
内齿圈材料 Ring material | 金属Metal |
输出轴轴承形式 Bearing at output | 滚动轴承Ball bearings |
最大允许径向负载 （离法兰 10mm 处） Max. Radial load （10mm from flange） |
≤80N |
最大允许轴向负载Max. shaft axial load | ≤30N |
径向间隙 （测量点尽量接近法兰） Radial play of shaft （near to flange） |
≤0.06nn |
轴向间隙 Axial play of shaft | ≤0.3 mm |
背隙（无负载时）Backlash at no-load | ≤1.5° |
42STH混合式步进电机性能 42STH Hybrid Stepping Motor Specifications
Model No. | 额定电压Rated Voltage | 每相电流 Current /Phase | 每相电阻 Resistance /Phase | 电感 Inductance /Phase | 保持转矩Holding Torgue | 引出线数# of Leads | 转动惯量Rotor Inertia | 重 量 Weight | 长度L1 Length L1 | 适配减速比Max. Gear Ratio |
单轴 Single Shaft | V | A | Ω | mH | g.cm | g-m² | g | mm | ||
42STH33-0956A | 4 | 0.95 | 4.2 | 2.5 | 1.6 | 6 |
35 |
0.22 |
34 | ≤ 1:264 |
42STH33-0406A | 9.6 | 0.4 | 24 | 15 | 1.6 | 6 | ≤ 1:264 | |||
42STH33-0316A | 12 | 0.31 | 38.5 | 21 | 1.6 | 6 | ≤1:264 | |||
42STH33-1334A | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | ≤1:189 | |||
42STH38-1206A | 4 | 1.2 | 3.3 | 3.2 | 2.6 | 6 |
54 |
0.28 |
40 | ≤1:100 |
42STH38-0806A | 6 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | ≤1:100 | |||
42STH38-0406A | 12 | 0.4 | 30 | 30 | 2.6 | 6 | ≤1:100 | |||
42STH38-1684A | 2.8 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | ≤1:71 |
42JX150K行星减速器性能 42JX150KPlanetary Gearbox Specifications
减速比 Reduction ratio | 3.5 | 14 | 17 | 21 | 49 | 61 | 84 | 104 | 126 | 172 | 212 | 294 |
减速级数 Number of gear trains | 1 | 2 | 3 | 4 | ||||||||
减速器长度(L2) Length(L2) mm | 32.5 | 39.2 | 45.9 | 52.6 | ||||||||
最大额定转矩 kg. cm Max. rated torque | 30 | 50 | 90 | 150 | ||||||||
瞬间允许转矩 kg.cm Short time permissible torque | 90 | 150 | 270 | 450 | ||||||||
效率 Efficiency % | 90% | 81% | 73% | 66% | ||||||||
重量 Weight g | 320 | 420 | 520 | 620 | ||||||||
