无刷电动机主要技术参数 Motor Technical Data
电机型号 TYPE | 极数 Number of poles | 相数 Number of phase | 额定电压 Rated Voltage VDC | 空载转速 No-load Speed r/min | 额定转速 Rated Speed r/min | 额定转矩 Rated Torque mN.m | 额定功率 Rated Power W | 峰值转矩 Reak Torque mN.m | 峰值电流 Peak Current A | 电阻 Line to line resistance ohms | 电感 Line to line inductance mH |
22ZWN45-2470 | 8 | 3 | 24 | 7000 | 4600 | 8.0 | 3.8 | 21 | 1.1 | 23 | 6.2 |

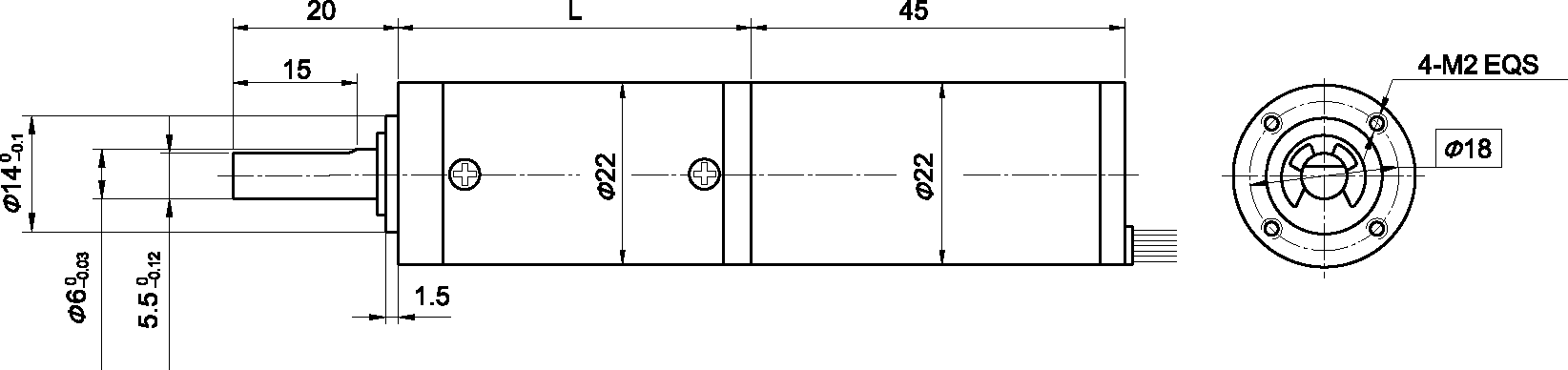

无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
配置22ZWN45—2470无刷直流电机(22ZWN45-2470 BLDC Motor)
减速比 Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
减速级数 Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
减速器长度(L) Length(L) mm | 24.4 | 24.4 | 33 | 33 | 31 | 41.5 | 41.5 | 41.5 | 41.5 | 49.8 | 49.8 | 49.8 |
空载速度 No-load speed r/min | 1887 | 1351 | 500 | 368 | 259 | 137 | 99 | 70 | 50 | 37 | 27 | 19 |
额定转速 Rated speed rAnin | 1240 | 888 | 329 | 242 | 170 | 90 | 65 | 46 | 33 | 24 | 17 | 12 |
额定转矩 Rated torque N.m | 0.027 | 0.037 | 0.091 | 0.12 | 0.17 | 0.30 | 0.41 | 0.58 | 0.80 | 1 | 1 | 1 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |

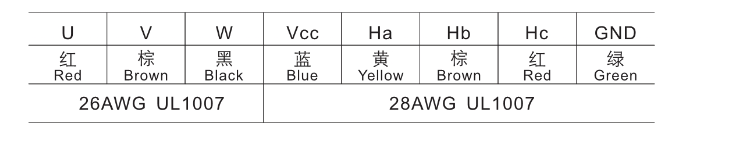

接线方式 Wire Diagram
