电动机主要技术参数 Motor Technical Data
电机型号 TYPE | 额定电压 Rated Voltage VDC | 空载转速 No-load speed r/min | 空载电流 No-load current A | 额定转速 Rated speed r/min | 额定转矩 Rated torque mN.m | 输出功率 Output Power W | 额定电流 Rated current A | 堵转力矩 Stall Torque mN.m | 堵转电流 Stall Current A |
60ZY95-2420 | 24 | 2000 | 0.4 | 1600 | 150 | 25 | 1.8 | 560 | 6.0 |
60ZY95-2430 | 24 | 3000 | 0.5 | 2400 | 180 | 40 | 3.0 | 690 | 11.0 |
齿轮减速电机主要技术参数 Gear Motor Technical Data
型号:60ZY95-2420（60ZY95-2420 DC Motor）
减速比 Reduction ratio | 3.6 | 4.25 | 7.5 | 13 | 15 | 18 | 27 | 32 | 47 | 55 | 65 | 76 | 115 | 168 | 198 | 234 |
减速级数 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
减速器长度(L) Length(L) mm | 41 | 41 | 41 | 53 | 53 | 53 | 61 | 61 | 64 | 64 | 64 | 64 | 64 | 76 | 76 | 76 |
空载转速 No-load speed r/min | 556 | 470 | 266 | 154 | 133 | 111 | 74 | 63 | 43 | 36 | 31 | 26 | 17 | 12 | 10 | 9 |
额定转速 Rated speed r/min | 444 | 376 | 213 | 123 | 106 | 88 | 59 | 50 | 34 | 29 | 24 | 21 | 14 | 9.5 | 8 | 6.8 |
额定转矩 Rated torque N.m | 0.48 | 0.57 | 1.0 | 1.5 | 1.8 | 2.1 | 3.2 | 3.8 | 5.1 | 6.0 | 7.1 | 8.3 | 12.5 | 16.5 | 19.6 | 20 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 6 | 6 | 6 | 25 | 25 | 25 | 25 | 25 | 50 | 50 | 50 | 50 | 50 | 60 | 60 | 60 |
型号:60ZY95-2430（60ZY95-2430 DC Motor）
减速比 Reduction ratio | 3.6 | 4.25 | 7.5 | 13 | 15 | 18 | 27 | 32 | 47 | 55 | 65 | 76 | 115 | 168 | 198 |
减速级数 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
减速器长度(L) Length(L) mm | 41 | 41 | 41 | 53 | 53 | 53 | 53 | 53 | 64 | 64 | 64 | 64 | 64 | 76 | 76 |
空载转速 No-load speed r/min | 833 | 706 | 400 | 230 | 200 | 167 | 111 | 94 | 64 | 54 | 46 | 39 | 26 | 18 | 15 |
额定转速 Rated speed r/min | 667 | 565 | 320 | 185 | 160 | 133 | 89 | 75 | 51 | 44 | 37 | 32 | 20 | 14 | 12 |
额定转矩 Rated torque N.m | 0.58 | 0.68 | 0.82 | 1.9 | 2.1 | 2.6 | 3.9 | 4.6 | 6.1 | 72 | 8.5 | 10 | 15 | 19 | 20 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 6 | 6 | 6 | 25 | 25 | 25 | 25 | 25 | 50 | 50 | 50 | 50 | 50 | 60 | 60 |

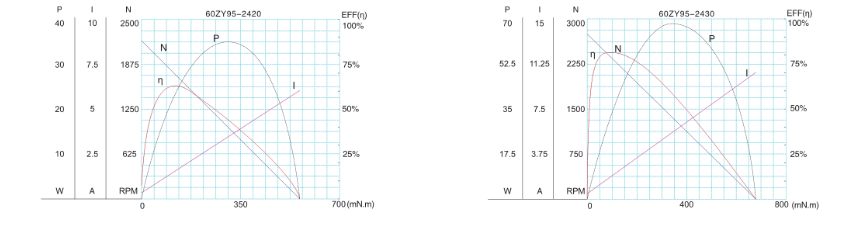

电动机特性图 Motor Characteristic Figure
