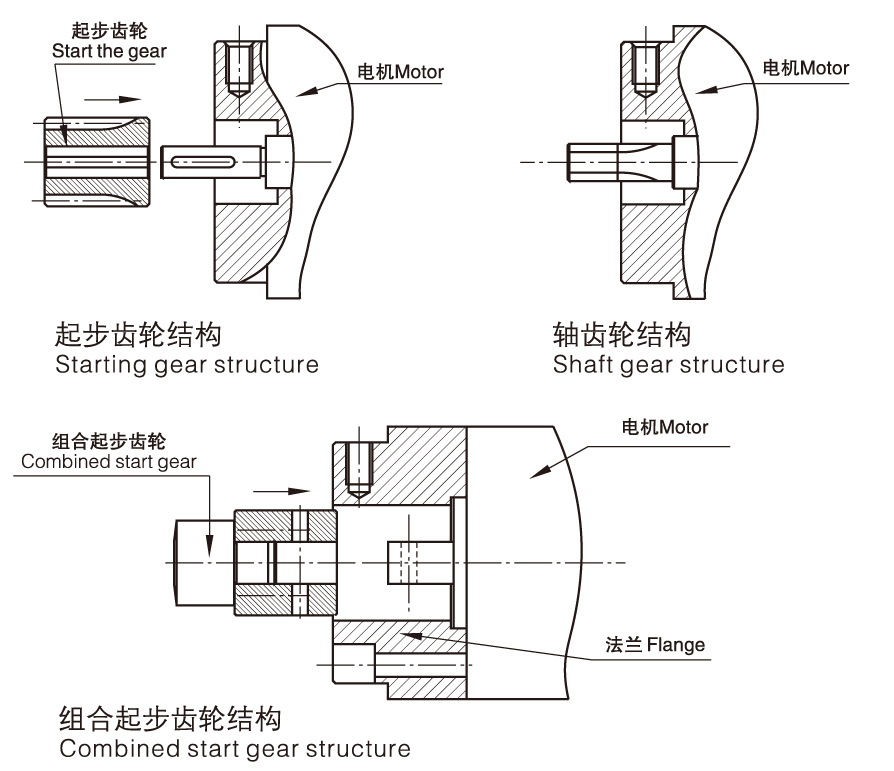

Shaft teeth, starting structure

Combined starting structure

Stage1

4.5 ~ 8

56

65

Stage2

20 ~ 64

71

80

Stage3

91 ~ 512

87

96

Transmission efficiency

90%

81%

73%

Rated tolerance torque

4N.m

12N.m

20N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

0.7

18

4.5

20

91

23

105

28

122

36

127

162

176

225

288

15

5.2

27

141

32

169

42

203

260

12

6.25

39

244

50

312

400

9

8

64

512
