• Product Description

1、The Motor Is Made for Household Juice Extractors.

2、Model: 60JX300K56/ 80ZY115. Gearbox Ratio:1:56, Rated Torque Up to 20N.m.

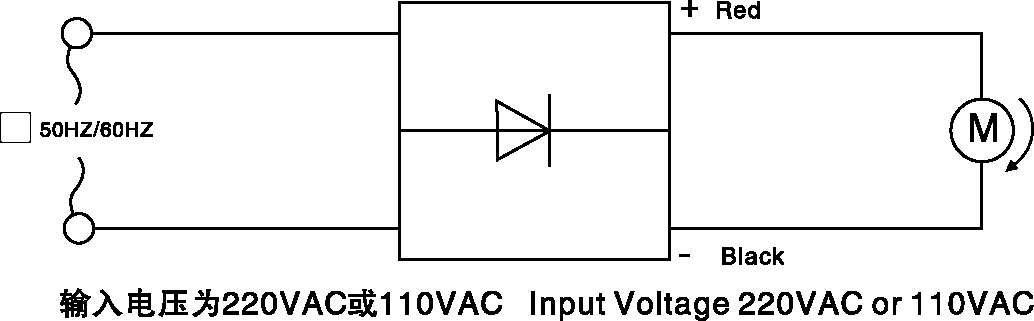

3、Externally Connect Bridge Rectifier While Running; Without Filter Capacitor; Optional Voltage: 220VAC or 110VAC, Frequency 50HZ or 60HZ.

4、Duty Cycle: S3 (on 20 Min/Off 20 Min).

• Gear Motor Technical Data

  Type	Rated  Voltage  VDC	No-load  Speed  r/min	No-load  Current A	Rated  Speed  r/min	Rated  Torque  N.m	Output  Powe r W	Rated  Current A	Stall  Torque  N.m	Stall  Current A
  60JX56/80ZY115-11030	110	50/60	54	0.2	32	20	67	1.45	1:56
  60JX56/80ZY115-22030	220	50/60	54	0.1	32	20	67	0.75	1:56
