Product Description
The underwater automated intelligent cleaning machine for swimming pools is a high-tech mechatronic product. The dedicated motors and reduction motors that are matched with it are divided into two types: "cleaning motors" and "traveling motors", which belong to high-tech core technologies. They can operate underwater. Besides being able to withstand water pressure, they also have innovations in terms of wear resistance and corrosion resistance. |  |
Gearmotor Technical Data

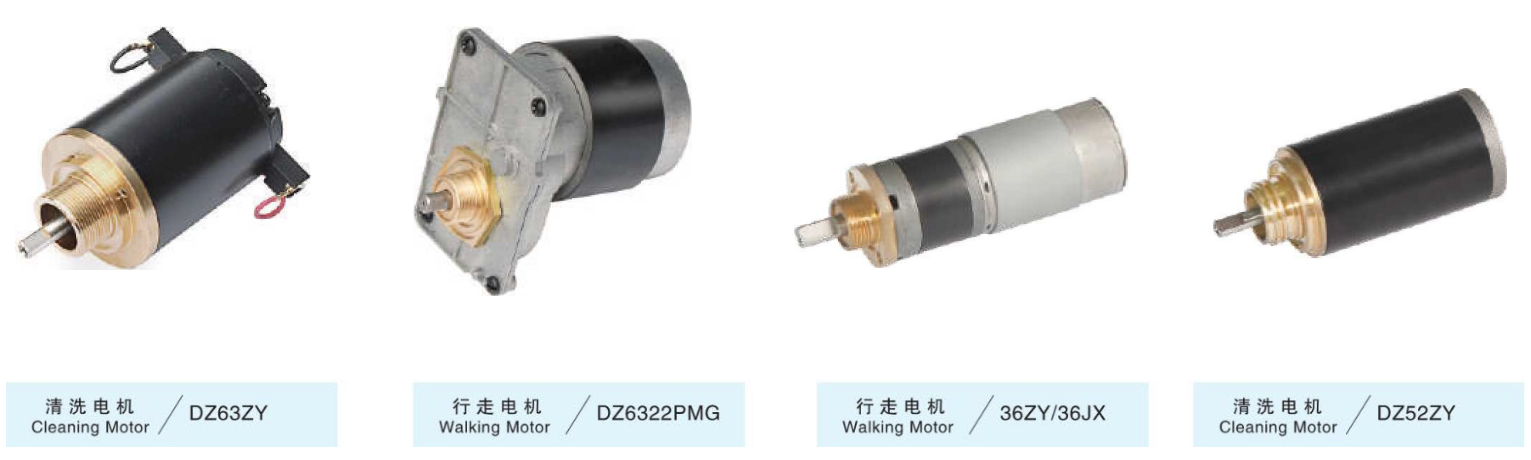

Type | Rated Voltage VDC | No-load Speed r/min | No-load Current A | Rated Speed r/min | Rated Torque N.m | Output Powe r W | Rated Current A | Stall Torque N.m | Stall Current A |
Type |
DZ63ZY | 17.5 | 3600 | 0.8 | 2850 | 0.18 | 45 | 4.8 | 0.55 | 10 | / |
DZ6322PMG | 15.8 | 55 | 0.6 | 49 | 1.27 | 10 | 0.8 | 4.2 | 8.0 | 1:57.81 |
DZ52ZY | 24 | 3600 | 0.6 | 2850 | 0.17 | 50 | 3.3 | 0.5 | 8 | / |
36ZY/36JX | 24 | 120 | 0.2 | 100 | 0.5 | 10 | 0.6 | 3.5 | 6 | 1:27 |
