22JX10K/22ZWN70

Motor Technical DataTYPE Number of poles Number of phaseRated Voltage VDCNo-load Speed r/m...

Material of the internal gear ring
22JX10K/22ZWN70: Metal material
Diameter: Φ22mm planetary reducer
Allowable torque range: 0.1N.m to 1.0N.m

product details

Outline reference diagram

Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power

W

Reak Torque mN.m

Peak Current

A

Line to line resistance

ohms

Line to line inductance

mH

22ZWN70-2460

8

3

24

6000

3500

22

8

50

1.5

11.8

4.2

Brushless Gear Motor Technical Data

22ZWN70-2460 BLDC Motor

Reduction ratio	3.7	5.2	14	19	27	51
Number of gear trains	1	1	2	2	2	3
Lengh(L) mm	24.4	24.4	33.0	33.0	33.0	41.5
No-load speed r/min	1617	1158	429	316	222	118
Rated speed r/min	943	676	250	184	130	69
Rated torque N.m	0.073	0.10	0.25	0.34	0.48	0.80
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5

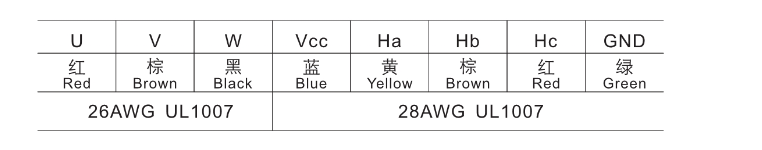

Wire Diagram
