Brushless DC planetary gear reduction motor
-
42JX150K/42ZWNP59
Motor Technical Data
TYPE | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated Power W | Rated current mA |
42ZWNP59-2440 | 10 | 3 | 24 | 4000 | 3000 | 68 | 1.2 | 21 |
Brushless Gear Motor Technical Data
42ZWNP59-2440 BLDC Motor
Reduction ratio | 3.5 | 14 | 21 | 49 | 84 | 104 | 126 | 172 | 294 |
Number of gear trains | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |

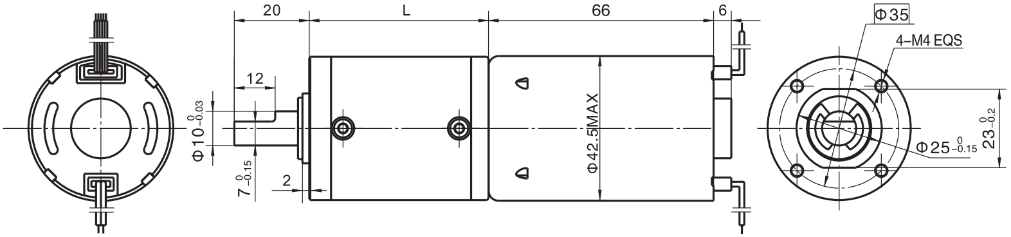

Length(L) mm | 32.5 | 39.2 | 39.2 | 46 | 46 | 46 | 46 | 52.5 | 52.5 |
No-load speed r/min | 1143 | 286 | 190 | 82 | 48 | 38 | 32 | 23 | 14 |
Rated speed rAnin | 857 | 214 | 143 | 61 | 36 | 29 | 24 | 17 | 10 |
Rated torque N.m | 0.21 | 0.77 | 1.1 | 2.4 | 4.1 | 5.1 | 6.2 | 7.7 | 13 |
N.m Max. permissible load in a short time | 3 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 |

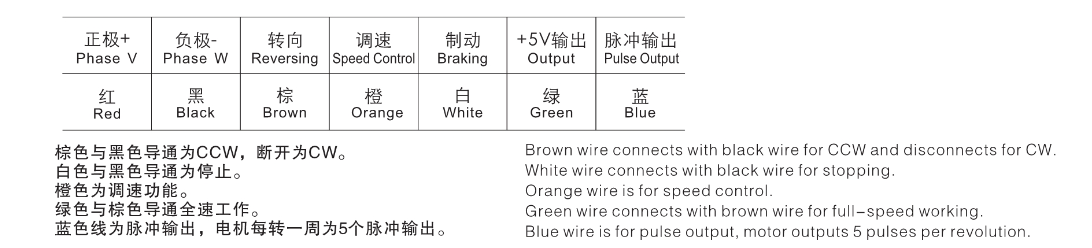

Wire Diagram
