Brushless DC planetary gear reduction motor
-
42JXG50K/42BL40
Brushless Motor Technical Data
TYPE |
Number of poles |
Number of phase | Rated Voltage VDC | No-load Speed r/min | Rated Speed r/min | Rated Torque mN.m | Rated Power W | Reak Torque mN.m | Peak Current A | Line to line resistance ohms | Line to line inductance mH |
42BL40-2441 | 10 | 3 | 24 | 4100 | 3000 | 70 | 22 | 300 | 6.2 | 2.6 | 1.83 |
Brushless Gear Motor Technical Data
42BL40-2441 BLDG Motor
Reduction ratio | 3.8 | 4.9 | 4.9 | 19 | 24 | 56 | 71 | 91 | 116 | 212 |
Number of gear trains | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |

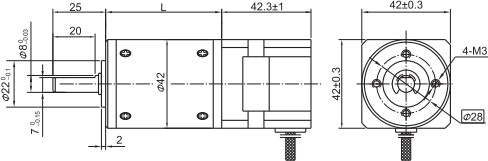

Lengh(L) mm | 35.2 | 35.2 | 35.2 | 45.7 | 45.7 | 56.0 | 56.0 | 56.0 | 56.0 | 66.3 |
No-lod speed r/min | 1075 | 840 | 840 | 216 | 171 | 73 | 58 | 45 | 35 | 19 |
Rated speed r/min | 785 | 615 | 615 | 158 | 125 | 54 | 42 | 33 | 26 | 14 |
Rated torque N.m | 0.24 | 0.31 | 0.31 | 1.1 | 1.4 | 2.9 | 3.6 | 4.7 | 5 | 5 |
N.m Max. permissible load in a short time | 1.5 | 1.5 | 1.5 | 6 | 6 | 12 | 12 | 12 | 12 | 15 |

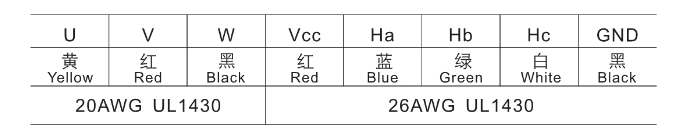

Wire Diagram
