42JX150K/42ZWN60

Motor Technical DataTYPE Number of poles Number of phaseRated Voltage VDCNo-load Speed r/m...

Material of the internal gear ring
42JX150K/42ZWN60: Metal material
Diameter: Φ42mm planetary reducer
Allowable torque range: 2 n.m to 15 n.m

Online Contact

PDF Download

product details

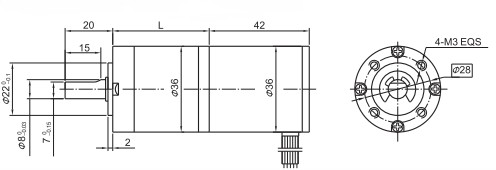

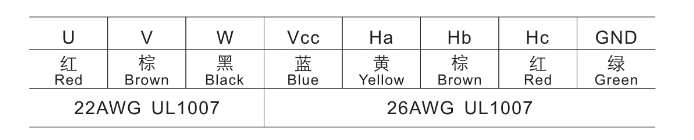

Outline reference diagram

Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power

W

Reak Torque mN.m

Peak Current

A

Line to line resistance

ohms

Line to line inductance

mH

42ZWN60-2420

8

3

24

2000

1400

40

5.8

180

1.5

11.9

15.0

42ZWN60-2430

8

3

24

3000

2100

50

11

150

2.6

6.0

6.4

Brushless Gear Motor Technical Data

42ZWN60-2420 BLDC Motor

Reduction ratio	3.5	14	21	49	84	104	126	172	294
Number of gear trains	1	2	2	3	3	3	3	4	4
Lengh(L) mm	32.5	39.2	39.2	46	46	46	46	52.5	52.5
No-lod speed r/min	571	142	95	41	24	19	16	12	7
Rated speed r/min	400	100	66	28	16	13	11	8	4.5
Rated torque N.m	0.12	0.45	0.68	1.4	2.4	3.0	3.6	4.5	7.7
N.m Max. permissible load in a short time	3	12	12	25	25	25	25	30	30

42ZWN60-2430 BLDC Motor

Reduction ratio	3.5	14	21	49	84	104	126	172	294
Number of gear trains	1	2	2	3	3	3	3	4	4
Lengh(L) mm	32.5	39.2	39.2	46	46	46	46	52.5	52.5
No-lod speed r/min	857	214	143	61	36	29	24	17	10
Rated speed r/min	600	150	100	43	25	20	17	12	7
Rated torque N.m	0.15	0.56	0.8	1.9	3.4	3.8	5.1	5.6	9.7
N.m Max. permissible load in a short time	3	12	12	25	25	25	25	30	30
