36JX30K/36ZY85P

Motor Technical DataTYPERatedvoltageVDCNo-loadSpeed r/minNo-loadcurrentmARatedSpeed r/minR...

Material of the internal gear ring
36JX30K/36ZY85P: Metal material
Diameter: Φ36mm planetary reducer
Allowable torque range: 0.03N.m to 0.3N.m

Online Contact

PDF Download

product details

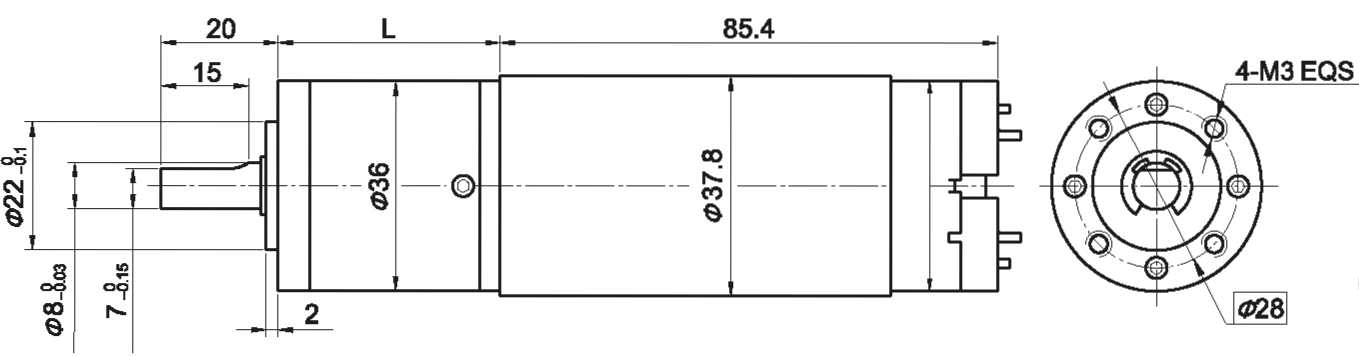

Outline reference diagram

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

mA

Rated

Speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

Torque

mN.m

Stall

current

A

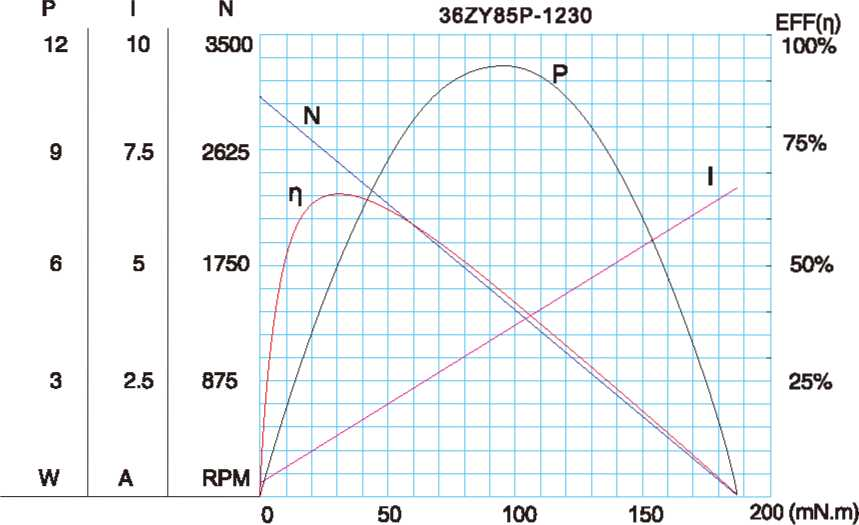

36ZY85P-1230

12

3000

250

2400

40

10

1.60

188

6.7

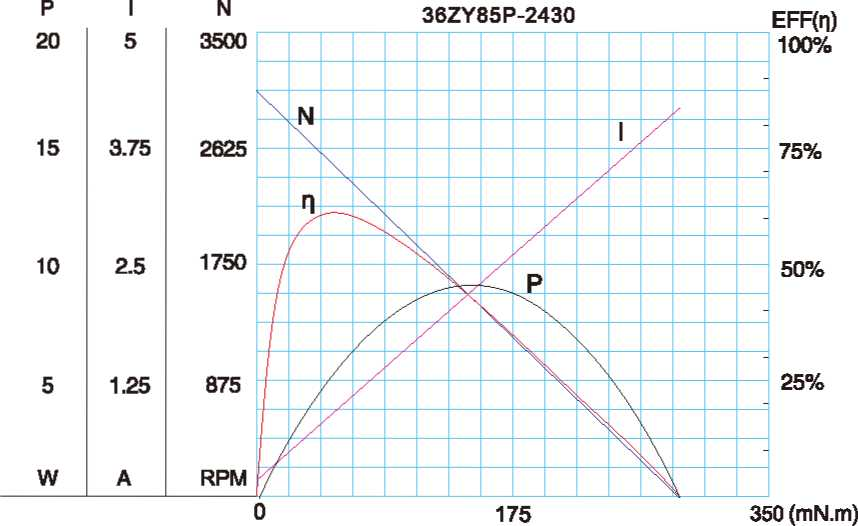

36ZY85P-2430

24

3000

150

2500

40

10

0.85

285

4.2

Gear Motor Technical Data

36ZY85P-1230 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Length(L) mm	31.0	31.0	38.5	38.5	38.5	48.4	48.4	48.4	48.4
No-load speed r/min	809	579	214	157	111	59	42	30	21
Rated speed r/min	649	462	171	126	89	47	34	24	18
Rated torque N.m	0.13	0.19	0.45	0.62	0.87	1.5	2.1	2.9	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	9	9	9

36ZY85P-2430 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Length(L) mm	31.0	31.0	38.5	38.5	38.5	48.4	48.4	48.4	48.4
No-load speed r/min	809	579	214	157	111	59	42	30	21
Rated speed r/min	674	483	179	132	93	49	35	25	19
Rated torque N.m	0.13	0.19	0.45	0.62	0.87	1.5	2.1	2.9	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	9	9	9
