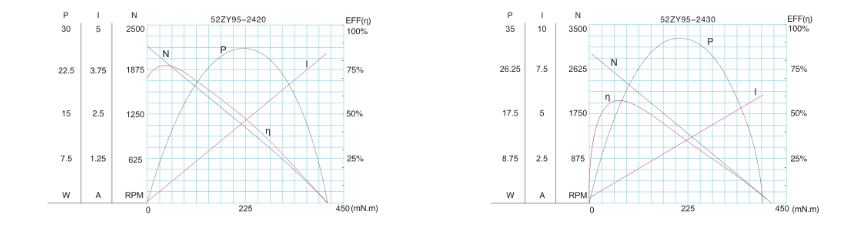

52ZY95-2420

24

2000

0.2

1600

80

15

1.2

400

4.2

52ZY95-2430

24

3000

0.3

2400

100

25

1.8

410

6.0

52ZY95-2440

24

4000

0.4

3200

150

50

3.5

585

11

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

Length(L) mm

49

49

49

65

65

65

65

65

80

80

80

80

80

No-load speed   r/min

444

320

250

100

71

56

40

31

22

16

12

9

6

Rated speed      r/min

356

256

200

80

57

44

32

25

17

12

9

7

5

Rated torque      N.m

0.32

0.45

0.58

1.3

1.8

2.2

3.2

4.1

5.3

7.4

9.5

13.1

18.2

N.m Max. permissible load in a short time

6

6

6

25

25

25

25

25

50

50

50

50

50

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

Length(L) mm

49

49

49

65

65

65

65

65

80

80

80

80

80

No-load speed   r/min

666

480

375

150

106

83

60

46

33

24

18

13

9

Rated speed      r/min

533

384

300

120

85

66

48

37

25

18

13

10

7.5

Rated torque      N.m

0.4

0.56

0.72

1.6

2.2

2.7

4

5.1

6.6

9.2

11.8

16.3

22

N.m Max. permissible load in a short time

6

6

6

25

25

25

25

25

50

50

50

50

50
