56JX300K/60ZY105

Motor Technical Data TYPERatedvoltageVDCNo-load speedr/minNo-load currentARated ...

Material of the internal gear ring
56JX300K/60ZY105: Metal material
Diameter: Φ56mm reinforced reducer
Allowable torque range: 2 n.m to 20 n.m

product details

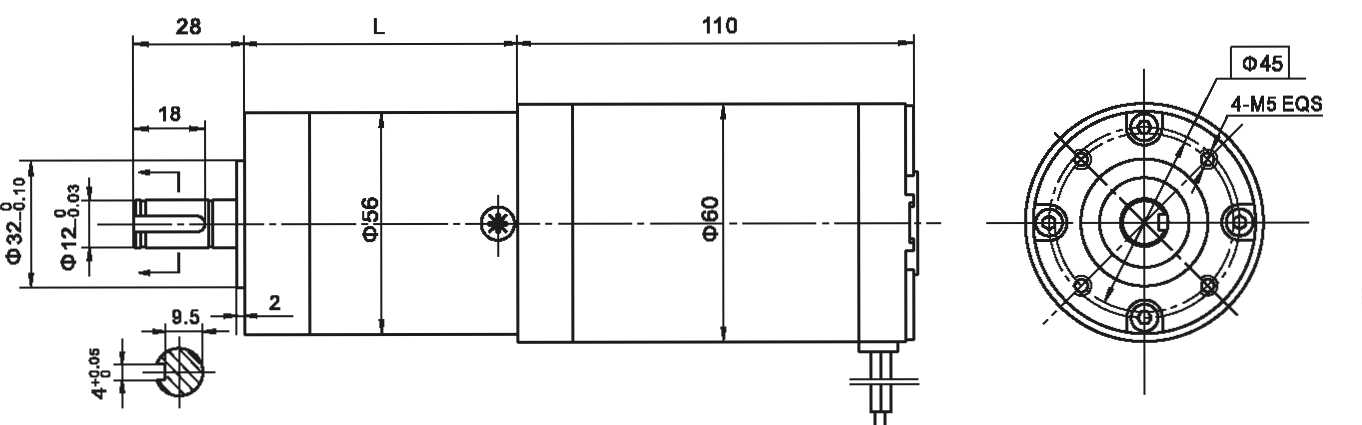

Outline reference diagram

Motor Technical Data

TYPE	Rated voltage VDC	No-load speed r/min	No-load current A	Rated speed r/min	Rated torque mN.m	Output Power W	Rated current A	Stall torque mN.m	Stall current A
60ZY105-2420	24	2000	0.25	1600	165	30	1.8	760	7.3
60ZY105-2430	24	3000	0.35	2400	180	45	2.2	790	11.2
60ZY105-2450	24	5000	0.50	4000	230	90	6.0	920	15.5

Gear Motor Technical Data

60ZY105-2430DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198	234
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	64	84	84	84
No-load speed r/min	833	706	400	230	200	167	111	94	64	54	46	39	26	18	15	13
Rated speed r/min	667	565	320	185	160	133	89	75	51	44	37	32	20	14	12	10
Rated torque N.m	0.58	0.68	1.2	1.8	2.1	2.6	3.9	4.6	6.1	7.2	8.5	10	15	20	23.5	28
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	90	90	90

60ZY105-2450 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	168	198
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	84	84
No-load speed r/min	1389	1176	666	385	333	278	185	156	106	91	77	66	30	25
Rated speed r/min	1111	941	533	307	266	222	148	125	85	72	61	52	24	20
Rated torque N.m	0.74	0.87	1.5	2.4	2.7	3.3	5.0	5.9	7.8	9.2	10.9	12.7	25.5	30
N.m Max. permissible load in a short time	6	6	25	25	25	25	25	25	50	50	50	50	60	60

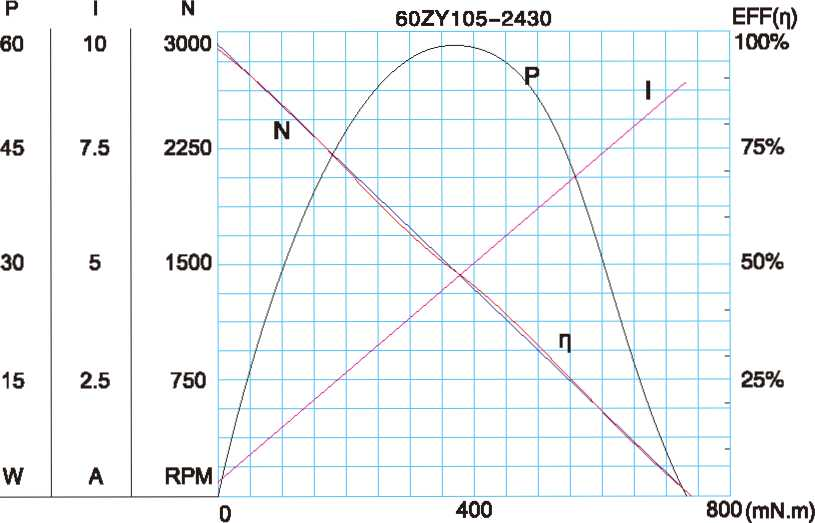

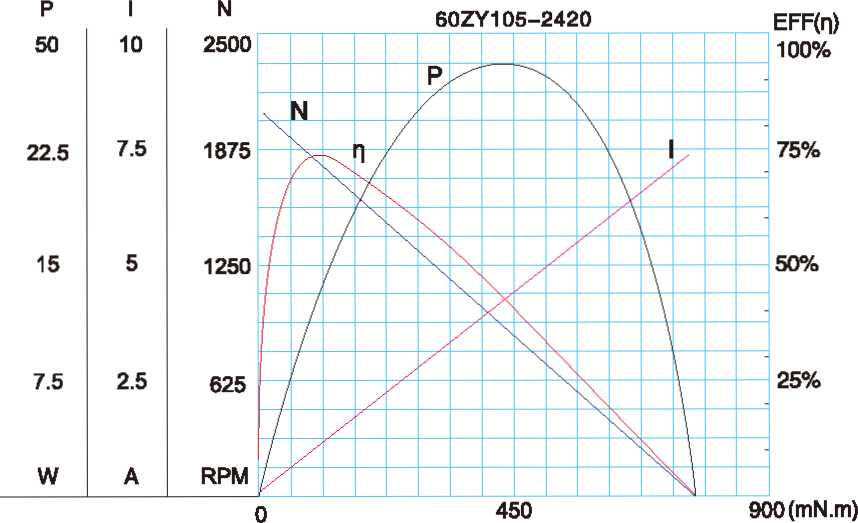

Motor Characteristic Figure
