36JX30K/38ZY63

Motor Technical DataTYPERated  Voltage VDCNo-load Speed r/minNo-load c...

Material of the internal gear ring
36JX30K/38ZY63: Metal material
Diameter: Φ36mm planetary reducer
Allowable torque range: 0.3N.m to 3.0N.m

Online Contact

PDF Download

product details

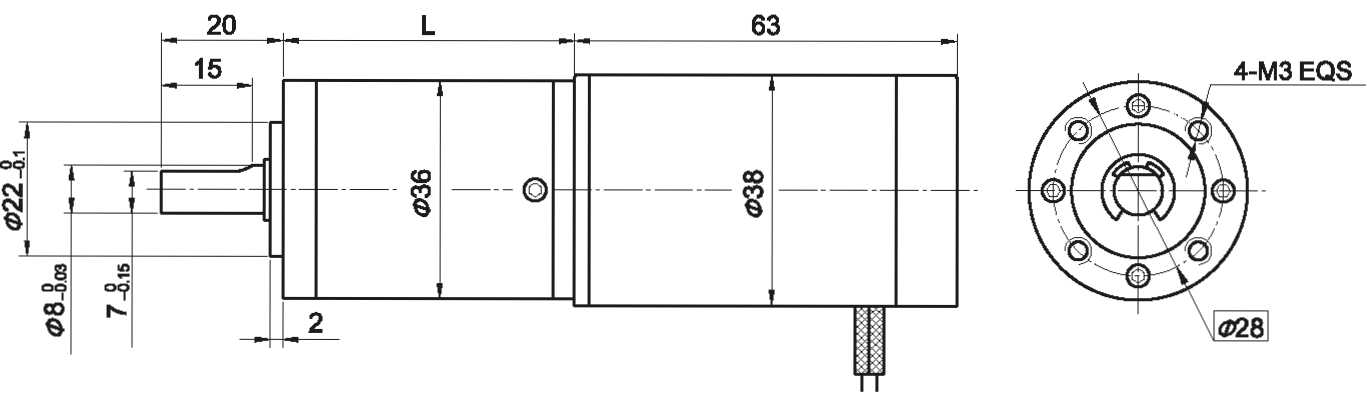

Outline reference diagram

Motor Technical Data

TYPE

Rated

Voltage

VDC

No-load

Speed

r/min

No-load

current

mA

Rated

Speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

Current

mA

Stall

Torque

mN.m

Stall

current

A

38ZY63-2430

24

3000

160

2500

15

3.8

0.35

65

1.0

38ZY63-2440

24

4000

220

3200

20

6.5

0.60

90

2.0

Gear Motor Technical Data

38ZY63-2430 DC Motor

Reduction ratio	3.7	5.1	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	31.0	31.0	38.5	38.5	38.5	48.4	48.4	48.4	48.4	55.8	55.8	55.8
No-load speed r/min	809	579	214	158	111	59	42	30	22	16	11	8
Rated speed r/min	670	480	175	130	92	49	35	25	18	13	9.5	7
Rated torque N.m	0.050	0.070	0.17	0.23	0.33	0.56	0.78	1.1	1.5	1.8	2.6	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9

38ZY63-2440 DC Motor

Reduction ratio	3.7	5.1	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	31.0	31.0	38.5	38.5	38.5	48.4	48.4	48.4	48.4	55.8	55.8	55.8
No-load speed r/min	1078	772	286	211	148	78	56	40	29	21	15	11
Rated speed r/min	860	617	228	168	118	62	45	32	23	17	13	10
Rated torque N.m	0.067	0.093	0.23	0.31	0.44	0.74	1.0	1.5	2.0	2.5	3	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9
