56JX200K/60ZY75

Motor Technical DataTYPERated voltageVDCNo-load speedr/minNo-loadcurrentARatedSpeed r...

Material of the internal gear ring
56JX200K/60ZY75: Metal material
Diameter: Φ56mm standard type reducer
Allowable torque range: 2 n.m to 20 n.m

product details

Outline reference diagram

Motor Technical Data

TYPE	Rated voltage VDC	No-load speed r/min	No-load current A	Rated Speed r/min	Rated Torque mN.m	Output Power W	Rated current A	Stall Torque mN.m	Stall current A
60ZY75-2420	24	2000	0.3	1600	50	8	0.8	215	2.1
60ZY75-2430	24	3000	0.4	2400	70	17	1.2	296	5.0
60ZY75-2440	24	4000	0.5	3200	90	30	2.2	404	8.5

Gear Motor Technical Data

60ZY75-2430

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198	234	276	326
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4	4	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	64	76	76	76	76	76
No-load speed r/min	833	706	400	230	200	167	111	94	64	54	46	39	26	18	15	13	11	9
Rated speed r/min	667	565	320	185	160	133	89	75	51	44	37	32	20	14	12	10	9	7.5
Rated torque N.m	0.22	0.26	0.47	0.73	0.85	1.0	1.5	1.8	2.4	2.8	3.3	3.8	5.8	7.7	9.1	10.8	12.7	15
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	60	60	60	60	60

60ZY75-2440

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198	234	276	326
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4	4	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	64	76	76	76	76	76
No-load speed r/min	1111	941	533	308	267	222	148	125	85	73	62	53	26	24	20	17	15	12
Rated speed r/min	889	753	426	246	213	177	118	100	68	58	49	42	27	19	16	13	11	9.5
Rated torque N.m	0.29	0.34	0.6	0.94	1.1	1.3	1.9	2.3	3.0	3.6	4.2	4.9	7.5	10	11.7	13.8	16.3	19.3
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	60	60	60	60	60

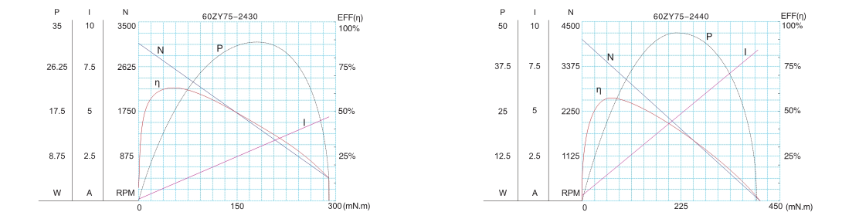

Motor Characteristic Figure
