36JXE30K/36ZY50

Motor Technical DataTYPERatedvoltageVDCNo-loadspeedr/minNo-loadcurrentmARatedSpeed r/minRated&n...

Material of the internal gear ring
36JXE30K/36ZY50: Metal material
36JXF30K/36ZY50: Powdered metal
Diameter: Φ36mm planetary reducer
Allowable torque range: 0.03N.m to 0.3N.m

Online Contact

PDF Download

product details

Outline reference diagram

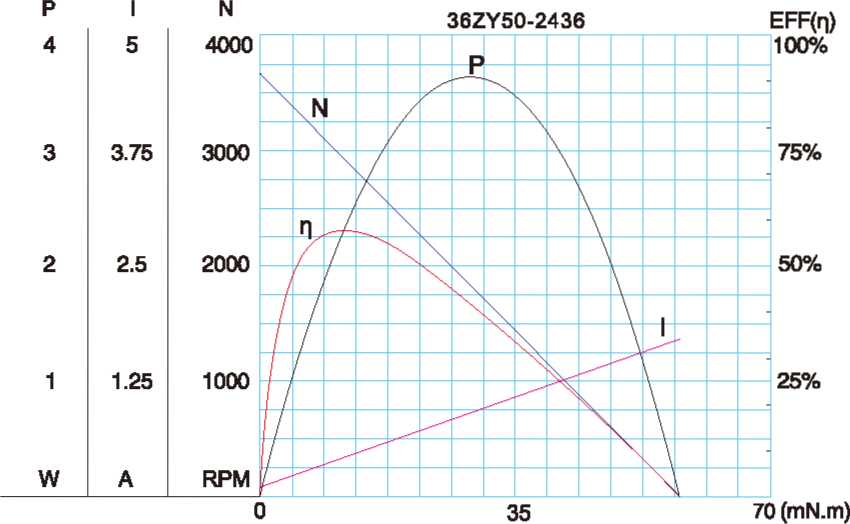

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

Speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

Torque

mN.m

Stall

current

A

36ZY50-2436

24

3600

100

3000

11

3.4

0.40

58

1.7

36ZY50-2442

24

4200

120

3450

12

4.2

0.43

56

1.6

Gear Motor Technical Data

36ZY50-2436 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4
No-load speed r/min	970	695	257	189	133	71	51	36	26	19	14	9.8	7.0
Rated speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1	5.8
Rated torque N.m	0.037	0.051	0.12	0.17	0.24	0.41	0.57	0.80	1.1	1.4	1.9	2.6	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9

36ZY50-2442 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4
No-load speed r/min	1132	811	300	221	156	82	59	42	30	22	16	11	8.1
Rated speed r/min	930	666	246	182	128	68	49	35	25	18	13	9.3	6.7
Rated torque N.m	0.040	0.056	0.14	0.18	0.26	0.45	0.62	0.88	1.2	1.5	2.1	2.9	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9
