82JX1200K/80ZY125

 Motor Technical DataTYPERated voltageVDCNo-loadSpeed r/minNo-loadcurrentARatedspeedr...

Material of the internal gear ring
82JX1200K/80ZY125: Metal material
Diameter: Φ82mm planetary reducer
Allowable torque range: 120 n.m

Online Contact

PDF Download

product details

Outline reference diagram

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

Torque

mN.m

Output

power

W

Rated

current

A

Stall

torque

N.m

Stall

current

A

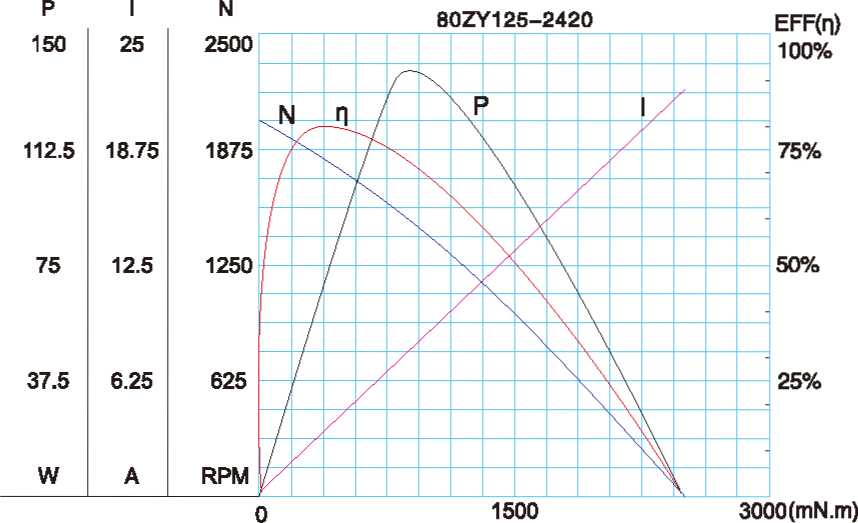

80ZY125-2420

24

2000

0.7

1650

440

76

5

2.5

22

80ZY125-2435

24

3500

1.6

2750

950

274

17

4.4

30

Gear Motor Technical Data

80ZY125-2420 DC Motor

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90	90	90	90	115	115	115	115	115	115	115	115
No-load speed r/min	500	286	143	105	80	63	40	31	28	22	17	13	10	6
Rated speed r/min	413	236	118	87	66	52	33	26	23	18	14	11	8.5	5
Rated torque N.m	1.6	2.8	5.0	6.8	8.9	11	16	21	23	29	37	49	63	106
N.m Max. permissible load in a short time	60	60	180	180	180	180	360	360	360	360	360	360	360	360

80ZY125-2435 DC Motor

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	3
Length(L) mm	66	66	90	90	90	90	115	115	115	115	115	115	115
No-load speed r/min	875	500	250	184	140	109	70	55	49	39	30	23	18
Rated speed r/min	688	393	196	145	110	86	55	43	39	31	24	18	14
Rated torque N.m	3.4	6.0	11	15	19	25	35	44	49	62	80	105	120
N.m Max. permissible load in a short time	60	60	180	180	180	180	360	360	360	360	360	360	360
