36JXE30K/36ZY57

Motor Technical DataTYPERated  voltageVDCNo-loadSpeed r/minNo-loadcurrentmARatedSpeed&nbsp...

Material of the internal gear ring
36JXE30K/36ZY57: Metal material
36JXF30K/36ZY57: Powdered metal
Diameter: Φ36mm planetary reducer
Allowable torque range: 0.03N.m to 0.3N.m

Online Contact

PDF Download

product details

Outline reference diagram

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

mA

Rated

Speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

torque

mN.m

Stall

Current

A

36ZY57-2433

24

3300

90

2700

24.5

6

0.50

130

1.9

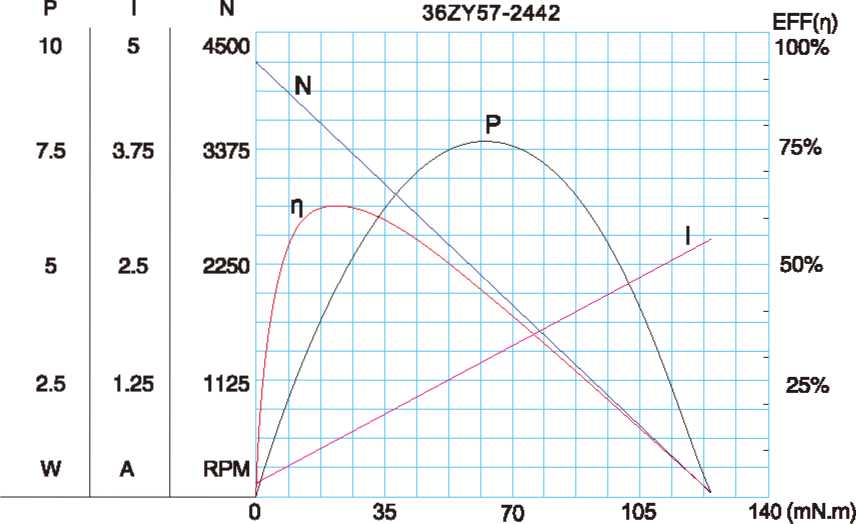

36ZY57-2442

24

4200

120

3600

19

7

0.52

125

2.8

Gear Motor Technical Data

96ZY140-2420 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	181	219
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4
No-load speed r/min	892	635	236	174	122	65	46	33	24	18	15
Rated speed r/min	730	519	193	142	100	53	38	27	19	15	12
Rated torque N.m	0.081	0.11	0.28	0.38	0.54	0.91	1.2	1.8	2.5	3	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9

96ZY140-2435 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	181	219	254	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4	47.4
No-load speed r/min	1132	811	300	221	156	82	59	42	30	22	19	17	14	12
Rated speed r/min	970	695	257	189	133	71	51	36	26	19	16	14	12	10
Rated torque N.m	0.063	0.089	0.22	0.29	0.42	0.71	0.98	1.4	1.9	2.3	2.7	3	3	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9	9
