82JX1200K/80ZY115

Motor Technical DataTYPERatedvoltageVDCNo-loadSpeed r/minNo-loadcurrentARatedspeedr/minRatedtor...

Material of the internal gear ring
82JX1200K/80ZY115: Metal material
Diameter: Φ82mm planetary reducer
Allowable torque range: 120 n.m

Online Contact

PDF Download

product details

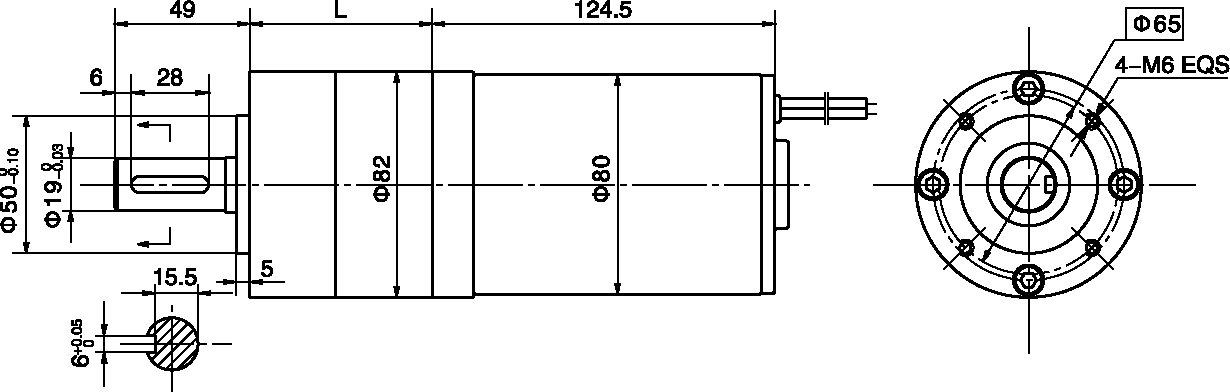

Outline reference diagram

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

A

Stall

torque

N.m

Stall

current

A

80ZY115-2420

24

2000

0.3

1500

440

72

4.2

1.7

15.4

80ZY115-2430

24

3000

0.5

2700

320

90

5.2

2.5

30

Gear Motor Technical Data

80ZY115-2420 DC Motor

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90	90	90	90	115	115	115	115	115	115	115	115
No-load speed r/min	500	286	143	105	80	63	40	31	28	22	17	13	10	6
Rated speed r/min	375	214	107	79	60	47	30	23	21	17	13	10	8	4.5
Rated torque N.m	1.6	2.8	5.0	6.8	8.9	11	16	21	23	29	37	49	63	105
N.m Max. permissible load in a short time	60	60	180	180	180	180	360	360	360	360	360	360	360	360

80ZY115-2430 DC Motor

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90	90	90	90	115	115	115	115	115	115	115	115
No-load speed r/min	750	429	214	158	120	94	60	47	42	33	26	20	15	9
Rated speed r/min	675	386	193	142	108	84	54	42	38	30	23	17.5	13.8	8
Rated torque N.m	1.2	2.0	3.6	4.9	6.5	8.3	12	15	16.5	21	27	36	46	77
N.m Max. permissible load in a short time	60	60	180	180	180	180	360	360	360	360	360	360	360	360
