56JX300K/63ZY125

 Motor Technical DataTYPERatedvoltage VDCNo-loadSpeed r/minNo-loadcurrentARatedSpeed ...

Material of the internal gear ring
56JX300K/63ZY125: Metal material
Diameter: Φ56mm reinforced reducer
Allowable torque range: 2 n.m to 30 n.m

product details

Outline reference diagram

Motor Technical Data

TYPE	Rated voltage VDC	No-load Speed r/min	No-load current A	Rated Speed r/min	Rated torque mN.m	Output power W	Rated current A	Stall torque mN.m	Stall current A
63ZY125-2430	24	3000	0.50	2500	265	65	4.6	950	15.2
63ZY125-2435	24	3500	0.80	2800	320	95	6.0	1100	19.3
63ZY125-2440	24	4000	1.20	3200	450	150	9.0	1200	22.6

Gear Motor Technical Data

63ZY125-2430 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	135	168
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4
Length(L) mm	41	41	41	61	61	61	61	61	72	72	72	72	72	72	84
No-load speed r/min	833	706	400	230	200	167	111	94	64	54	46	39	26	22	18
Rated speed r/min	694	588	333	192	167	139	92	78	53	45	38	33	21	18	15
Rated torque N.m	0.85	1.0	1.7	2.7	3.2	3.8	5.7	6.8	9.0	10	12.5	14.7	22	26	30
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	50	90

63ZY125-2440 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	135	168
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	3	4
Length(L) mm	41	41	41	61	61	61	61	61	72	72	72	72	72	72	84
No-load speed r/min	1111	941	533	308	267	222	148	125	85	73	62	53	35	29	24
Rated speed r/min	888	752	426	246	213	177	118	100	68	58	49	42	27	24	19
Rated torque N.m	1.4	1.7	3.0	4.7	5.4	6.5	9.8	11	15	18	21	25	30	30	30
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	50	90

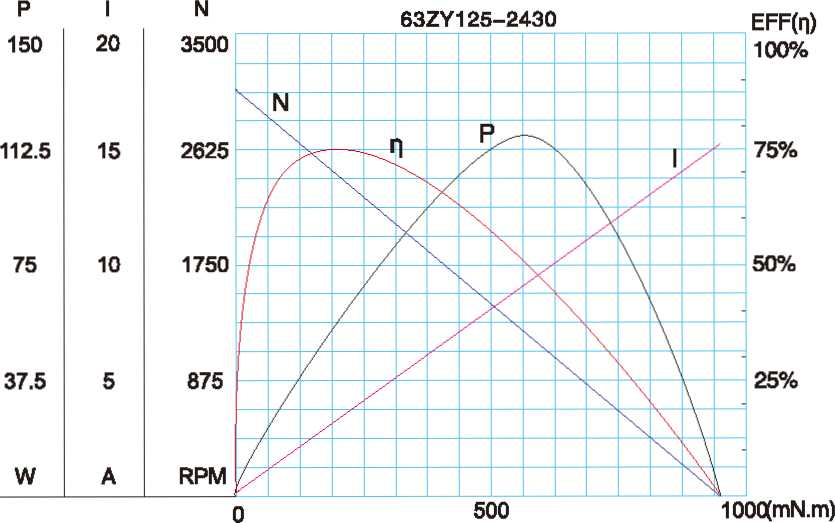

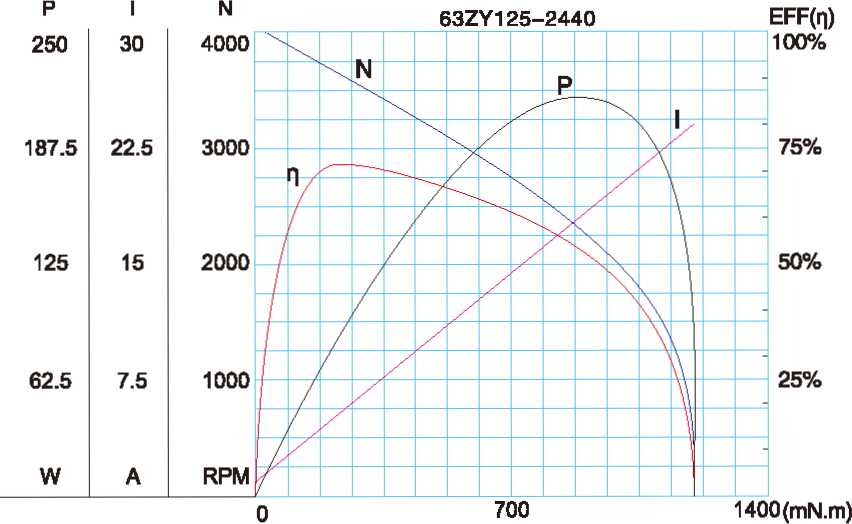

Motor Characteristic Figure
