56JX300K/80ZY115

Motor Technical DataTYPERatedvoltageVDCNo-load Speed r/minNo-loadcurrentARated Speed&...

Material of the internal gear ring
56JX300K/80ZY3115: Metal material
Diameter: Φ56mm planetary reducer
Allowable torque range: 30 n.m

Online Contact

PDF Download

product details

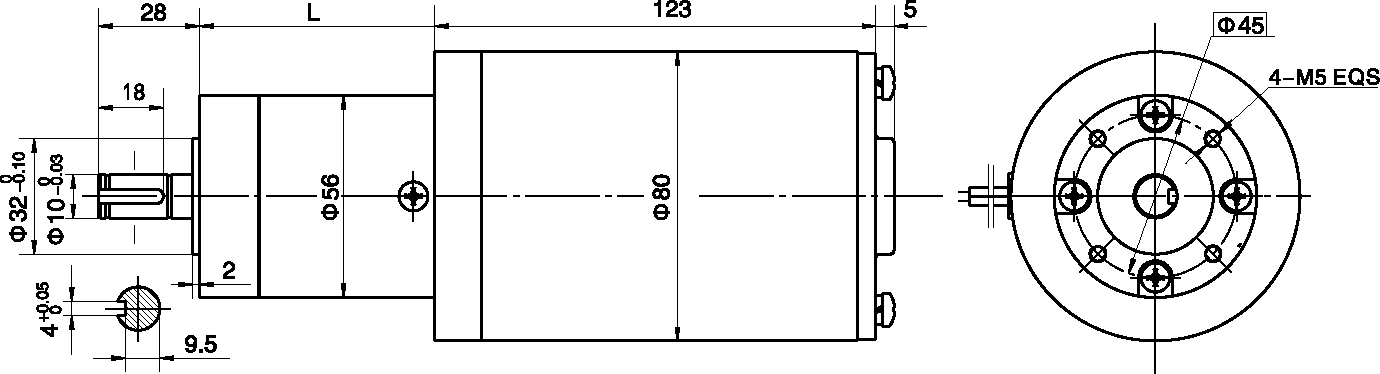

Outline reference diagram

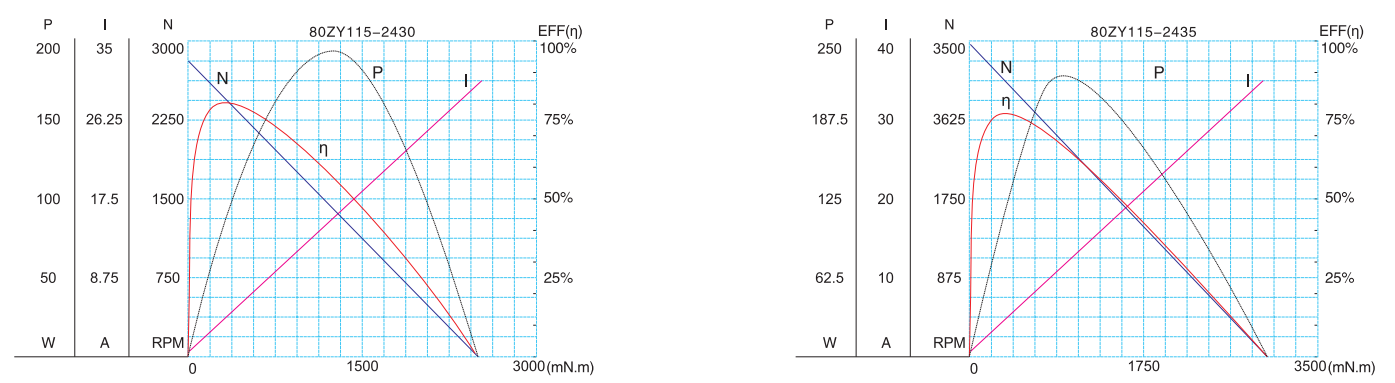

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

A

Rated

Speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

torque

N.m

Stall

current

A

80ZY115-2430

24

3000

0.80

2400

450

120

7.5

2.5

30

80ZY115-2435

24

3500

1.10

2900

500

150

9.5

3.0

35

Gear Motor Technical Data

80ZY115-2430 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3
Length(L) mm	41	41	41	61	61	61	61	61	72	72	72	72
No-load speed r/min	833	706	400	230	200	167	111	94	64	54	46	39
Rated speed r/min	667	565	320	185	160	133	88	75	51	44	37	32
Rated torque N.m	1.46	1.72	2.7	4.7	5.4	6.5	8.7	10.3	15.4	18	21.3	25
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50

80ZY115-2435 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3
Length(L) mm	41	41	41	61	61	61	61	61	72	72	72	72
No-load speed r/min	972	824	467	269	233	194	130	109	74	64	54	46
Rated speed r/min	805	682	320	223	193	161	107	90	62	53	44	38
Rated torque N.m	1.6	1.9	3.0	5.2	6.0	7.2	9.8	11.6	17	20	23.7	27.7
N.m Max. permissible load in a short time	6	6	6	6	25	25	25	25	50	50	50	50
