120JX3000K/96ZY140

Motor Technical DataTYPERatedvoltageVDCNo-load Speed r/minNo-loadcurrentARatedSpeed r...

Material of the internal gear ring
120JX3000K/96ZY140: Metal material
Diameter: Φ120mm planetary reducer
Allowable torque range: 200 n.m

Online Contact

PDF Download

product details

Outline reference diagram

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

A

Rated

Speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

torque

N.m

Stall

Current

A

96ZY140-2420

24

2000

1.0

1600

800

150

9

2.9

27

96ZY140-2435

24

3500

1.8

2800

950

200

13

3.2

45

Gear Motor Technical Data

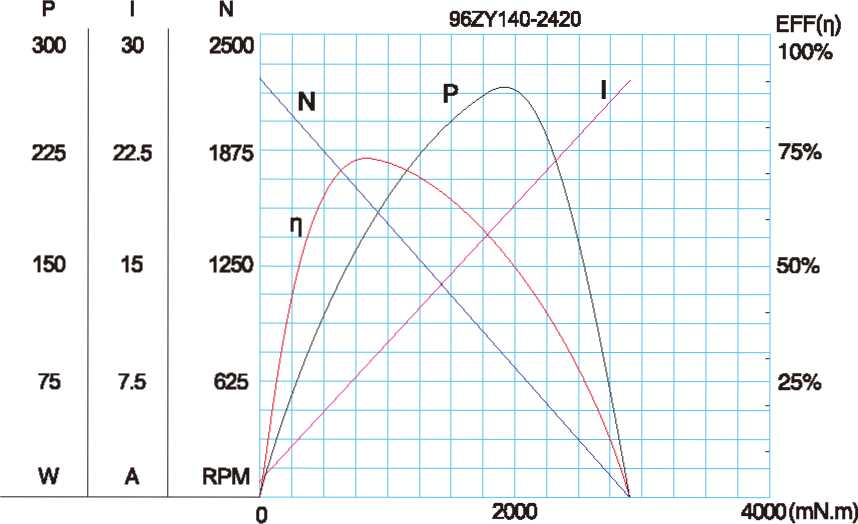

96ZY140-2420 DC Motor

Reduction ratio	4.8	6	10	23	38	42	69	84	142	234	258	387	427
Number of gear trains	1	1	1	2	2	2	2	3	3	3	3	3	3
Length(L) mm	119	119	119	153	153	153	153	182	182	182	182	182	182
No-load speed r/min	416	233	200	87	52	47	29	24	14	8.5	7.7	5.2	4.6
Rated speed r/min	333	266	160	70	42	38	23	19	11	6.8	6.2	4.1	3.7
Rated torque N.m	3.4	4.3	7.2	15	24	27	44	49	83	136	150	200	249
N.m Max. permissible load in a short time	150	150	150	450	450	450	450	900	900	900	900	900	900

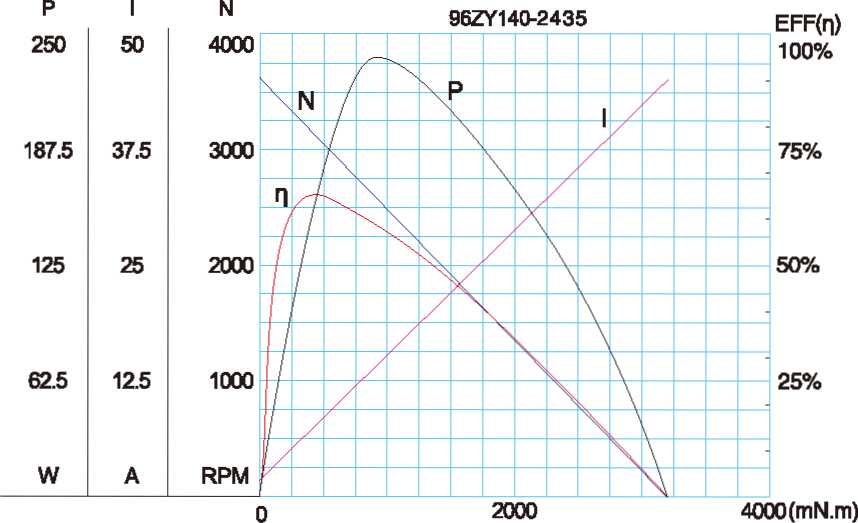

96ZY140-2435 DC Motor

Reduction ratio	4.8	6	10	23	38	42	69	84	142	234	258	387	427
Number of gear trains	1	1	1	2	2	2	2	3	3	3	3	3	3
Length(L) mm	119	119	119	153	153	153	153	182	182	182	182	182	182
No-load speed r/min	729	583	350	152	92	83	51	42	25	15	13.5	9	8
Rated speed r/min	583	466	280	121	73	66	40	33	19	12	10.8	7.2	6.5
Rated torque N.m	4.1	5.1	8.5	17	29	32	53	58	98	162	178	268	296
N.m Max. permissible load in a short time	150	150	150	450	450	450	450	900	900	900	900	900	900
