56JX200K/60ZY95_Permanent magnet DC planetary gear reduction motor_Product CenterZhejiang Dongzheng Electric Motor Co., Ltd

56JX200K/60ZY95

 Motor Technical DataTYPERatedVoltage VDCNo-loadspeedr/minNo-load currentARated ...

Material of the internal gear ring
56JX200K/60ZY95: Metal material
Diameter: Φ56mm standard type reducer
Allowable torque range: 2 n.m to 20 n.m

Online Contact

PDF Download

product details

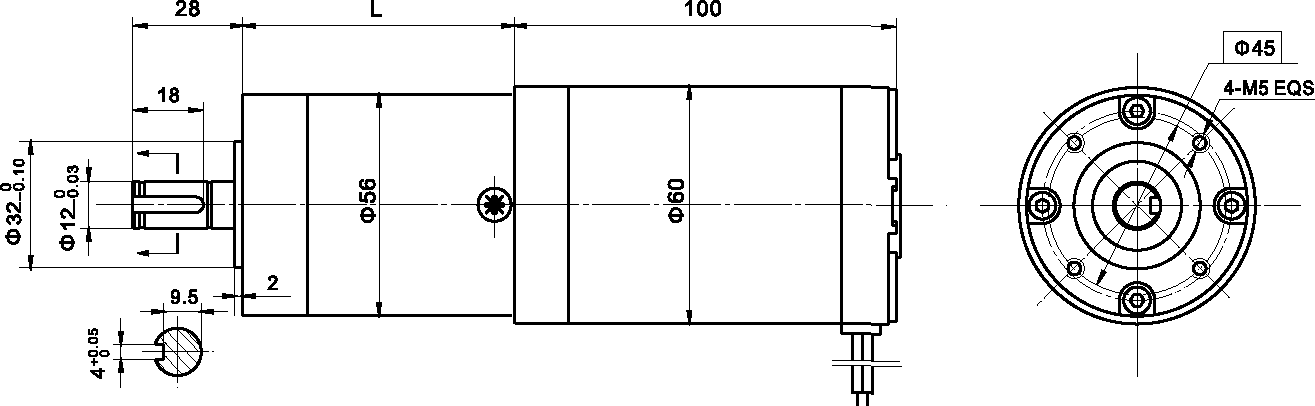

Outline reference diagram

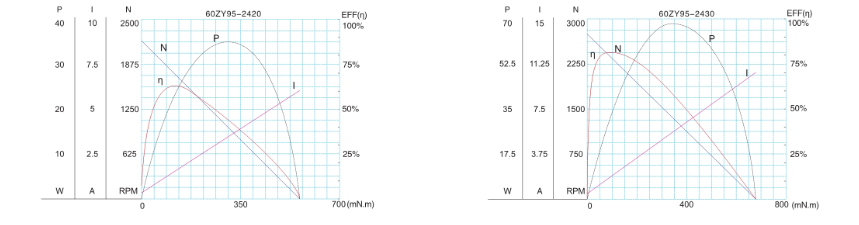

Motor Technical Data

TYPE

Rated

Voltage

VDC

No-load

speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

Torque

mN.m

Stall

Current

A

60ZY95-2420

24

2000

0.4

1600

150

25

1.8

560

6.0

60ZY95-2430

24

3000

0.5

2400

180

40

3.0

690

11.0

Gear Motor Technical Data

60ZY95-2420 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198	234
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4	4
Length(L) mm	41	41	41	53	53	53	61	61	64	64	64	64	64	76	76	76
No-load speed r/min	556	470	266	154	133	111	74	63	43	36	31	26	17	12	10	9
Rated speed r/min	444	376	213	123	106	88	59	50	34	29	24	21	14	9.5	8	6.8
Rated torque N.m	0.48	0.57	1.0	1.5	1.8	2.1	3.2	3.8	5.1	6.0	7.1	8.3	12.5	16.5	19.6	20
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	60	60	60

60ZY95-2430 DC Motor

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	64	76	76
No-load speed r/min	833	706	400	230	200	167	111	94	64	54	46	39	26	18	15
Rated speed r/min	667	565	320	185	160	133	89	75	51	44	37	32	20	14	12
Rated torque N.m	0.58	0.68	0.82	1.9	2.1	2.6	3.9	4.6	6.1	72	8.5	10	15	19	20
N.m Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	60	60
