36JXE30K/36ZWN42

 Motor Technical DataTYPE Number of poles Number of phaseRated Voltage VDCNo-loa...

product details

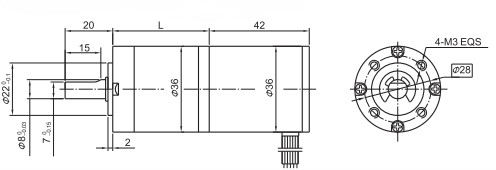

Outline reference diagram

TYPE

Number of poles

Number of phase

Rated Voltage

VDC

No-load Speed

r/min

Rated Speed

r/min

Rated Torque

mN.m

Rated Power

W

Reak Torque

mN.m

36ZWN42-2430

8

3

24

3000

2100

32

7

160

36ZWN42-2440

8

3

24

4000

2800

36

10

180

36ZWN42-2430 BLDC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4
Lengh(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4
No-lod speed r/min	809	576	214	158	111	59	42	30	22	16	11
Rated speed r/min	566	405	150	111	78	41	30	23	18	13	8.0
Rated torque N.m	0.09	0.13	0.31	0.42	0.59	1.0	1.4	2.0	2.5	3	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9

36ZWN42-2440 BLDC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4
Lengh(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4
No-lod speed r/min	1078	772	286	211	148	78	56	40	29	21	15
Rated speed r/min	755	541	200	147	104	55	39	30	23	18	14
Rated torque N.m	0.10	0.14	0.34	0.46	0.66	1.1	1.6	2.2	2.5	3	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9
