无刷电动机主要技术参数 Brushless Motor Technical Data
电机型号 TYPE | 极数Number of poles | 相数Number of phase | 额定电压Rated Voltage VDC | 空载转速No-load Speed r/min | 额定转速Rated Speed r/min | 额定转矩Rated Torque mN.m | 额定电流Rated Current A | 输出功率Output power W |
42ZWNP66T-2430 | 8 | 3 | 24 | 3000 | 2600 | 150 | 3.7 | TBD |
无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
配置 42ZWNP66T-2430 无刷直流电机(42ZWNP66T-2430 BLDC Motor)
减速比 Reduction ratio | 3.5 | 14 | 21 | 49 | 84 | 104 | 126 | 156 | 172 | 196 | 212 |
减速级数 Number of gear trains | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
减速器长度(L) Lengh(L) mm | 32.5 | 39.2 | 39.2 | 46 | 46 | 46 | 46 | 52.5 | 52.5 | 52.5 | 52.5 |
空载转速 No-lod speed r/min | 857 | 214 | 143 | 61 | 36 | 29 | 24 | 19 | 17 | 15 | 14 |
额定转速 Rated speed r/min | 728 | 182 | 121 | 52 | 30 | 24 | 20 | 16 | 15 | 13 | 12 |
额定转矩 Rated torque N.m | 0.47 | 1.7 | 2.5 | 5.3 | 9.2 | 11.4 | 13.8 | 15.4 | 16.8 | 19 | 20 |
最大瞬间允许负载 N.m Max. permissible load in a short time |
3 |
12 |
12 |
25 |
25 |
25 |
25 |
30 |
30 |
30 |
30 |

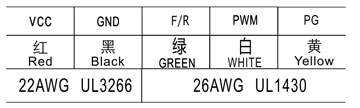

接线方式 Wire Diagram
