产品特点和用途 Description of The Product
80mm的一体式齿轮减速器，允许负载10.0N.m。合金结构钢齿轮，全部滚动轴承的配置。
80mm integrated gearbox, with rated torque up to 10.0 N.m, alloy constructional steel gears, all equipped with ball bearings.
电动机主要技术参数 Motor Technical Date
电机型号 Type | 额定电压 Rated voltage VDC | 空载转速 No-load speed r/min | 空载电流 No-load current A | 额定转速 Rated speed r/min | 额定转矩 Rated Torque mN.m | 输出功率 Output power W | 额定电流 Rated current A | 堵转转矩 Stall torque mN.m | 堵转电流 Stall Current A |
80ZY100-2420 | 24 | 2000 | 0.4 | 1700 | 0.25 | 45 | 3.0 | 1.5 | 16 |
80ZY100-2430 | 24 | 3000 | 0.5 | 2600 | 0.30 | 80 | 5.0 | 1.8 | 22 |
齿轮减速电机主要技术参数 Gear Motor Technical Data
配置 80ZY100-2420 直流电机(80ZY100-2420 DC Motor)
减 速 比 | Reduction ratio | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | |
减速级数 | Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
减速器长度(L) | Length(L) | mm | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
空载转速 | No-load speed | r/min | 667 | 400 | 333 | 267 | 222 | 200 | 160 | 133 | 111 | 100 | 80 | 67 | 56 | 50 | 40 | 33 | 27 |
额定转速 | Rated speed | r/min | 567 | 340 | 283 | 227 | 189 | 170 | 136 | 113 | 94 | 85 | 68 | 57 | 47 | 43 | 34 | 28 | 23 |
额定转矩 | Rated torque | N.m | 0.68 | 1.1 | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 | 3.0 | 3.6 | 3.7 | 4.6 | 5.5 | 6.6 | 7.3 | 9.1 | 9.9 | 10 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | ||
转向 | Direction of rotation | CW | CW | CW | CW | CW | CW | CW | CW | CW | CCW | CCW | CCW | CCW | CCW | CCW | CW | CW | |
配置 80ZY100-2430 直流电机(80ZY100-2430 DC Motor)
减 速 比 | Reduction ratio | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | |
减速级数 | Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
减速器长度(L) | Length(L) | mm | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
空载转速 | No-load speed | r/min | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 40 |
额定转速 | Rated speed | r/min | 800 | 520 | 433 | 347 | 289 | 260 | 208 | 173 | 144 | 130 | 104 | 87 | 72 | 65 | 52 | 43 | 35 |
额定转矩 | Rated torque | N.m | 0.81 | 1.2 | 1.5 | 1.8 | 2.2 | 2.4 | 3.0 | 3.6 | 4.4 | 4.4 | 5.5 | 6.6 | 7.9 | 8.8 | 9.9 | 10 | 10 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | ||
转向 | Direction of rotation | CW | CW | CW | CW | CW | CW | CW | CW | CW | CCW | CCW | CCW | CCW | CCW | CCW | CW | CW | |

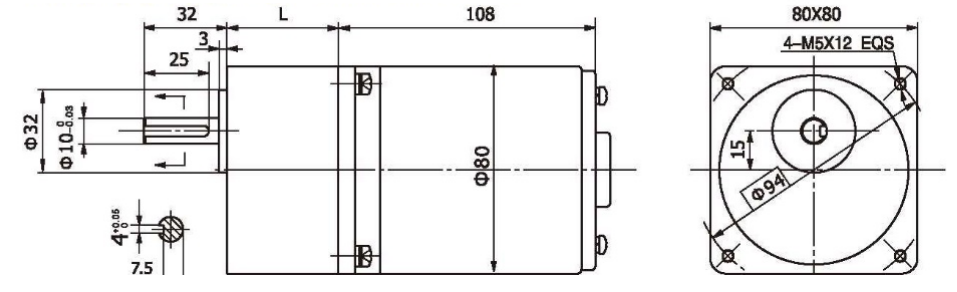

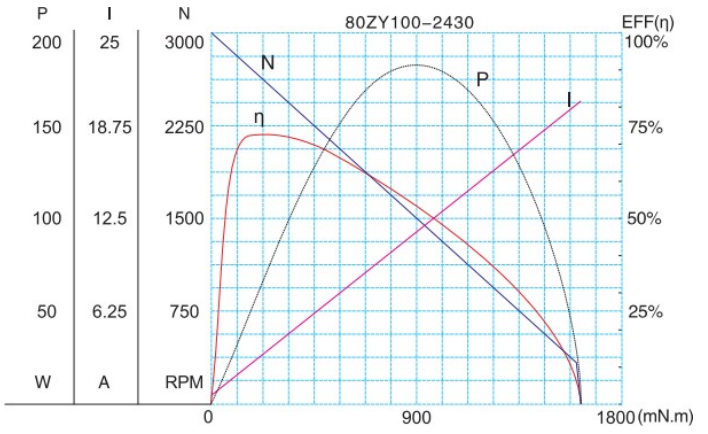

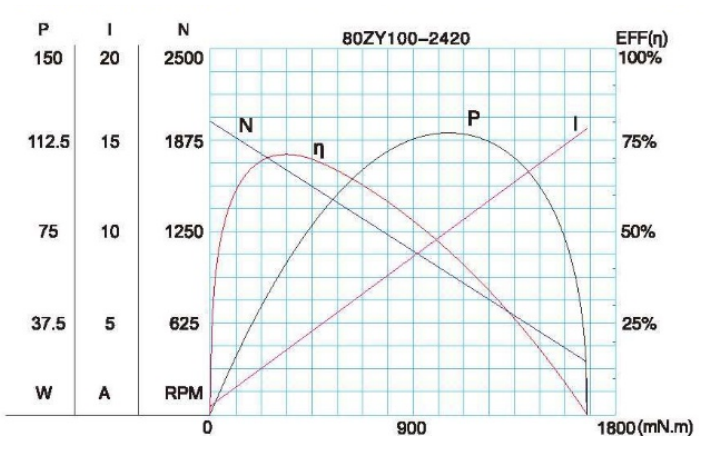

电动机特性图 Motor Characteristic Figure
