无刷电动机主要技术参数 Brushless Motor Technical Data
电机型号 TYPE |
极数Number of poles |
相数Number of phase | 额定电压Rated Voltage VDC | 空载转速No-load Speed r/min | 额定转速Rated Speed r/min | 额定转矩Rated Torque mN.m | 额定功率Rated Power W | 峰值转矩Reak Torque mN.m | 峰值电流Peak Current A | 电阻Line to line resistance ohms | 电感Line to line inductance mH |
42BL40-2441 | 10 | 3 | 24 | 4100 | 3000 | 70 | 22 | 300 | 6.2 | 2.6 | 1.83 |
无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
配置 42BL40-2441 无刷直流电机(42BL40-2441 BLDG Motor)
减速比 Reduction ratio | 3.8 | 4.9 | 4.9 | 19 | 24 | 56 | 71 | 91 | 116 | 212 |
减速级数 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |

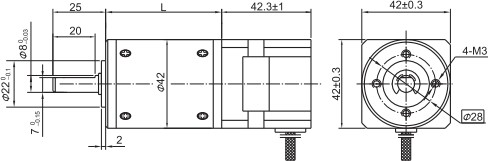

减速器长度(L) Lengh(L) mm | 35.2 | 35.2 | 35.2 | 45.7 | 45.7 | 56.0 | 56.0 | 56.0 | 56.0 | 66.3 |
空载转速 No-lod speed r/min | 1075 | 840 | 840 | 216 | 171 | 73 | 58 | 45 | 35 | 19 |
额定转速 Rated speed r/min | 785 | 615 | 615 | 158 | 125 | 54 | 42 | 33 | 26 | 14 |
额定转矩 Rated torque N.m | 0.24 | 0.31 | 0.31 | 1.1 | 1.4 | 2.9 | 3.6 | 4.7 | 5 | 5 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 1.5 | 1.5 | 1.5 | 6 | 6 | 12 | 12 | 12 | 12 | 15 |

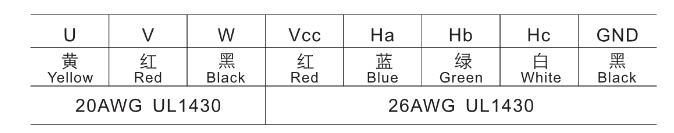

接线方式 Wire Diagram
