36JXK30K

Gear Ratio ParameterGear Ratio(mm) DimensionStage13.7 ~ 5.227Stage214 ~ 2734.2St...

Housing material	Metal
Bearing at output	Ball bearings
Max. Radial load(10mm from flange)	≤50N
Max.shaft axial load	≤30N
Radial play of shaft (near to flange)	≤0.07mm
Axial play of shaft	≤0.3 mm
Backlash at no-load	≤0.5°
Shaft press fit force, max	≤120N

product details

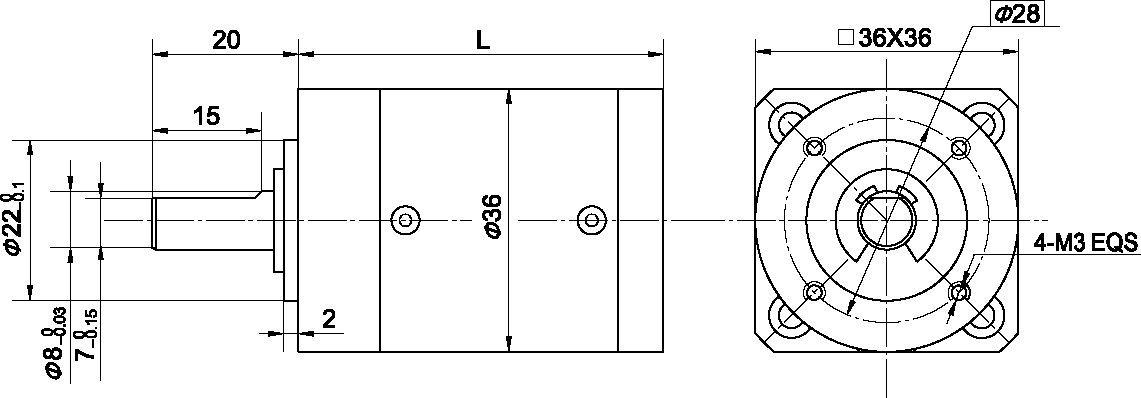

Outline reference diagram

Parameter	Stage1	Stage2	Stage3
Transmission efficiency	90%	81%	73%
Rated tolerance torque	0.3N.m	1.2N.m	3.0N.m
Max momentary tolerance torque	Three times of the rated torque
Operating temperature	-10℃~ +80℃
Operating ambient humidity	20%~85%RH
Recommend input speed	≤4000rpm
Input and output direction	Same direction
