60CJB50K

Gear Ratio ParameterParameterStage2Transmission efficiency81%Rated tolerance torque5N.mInput and out...

Bearing at output	Ball bearings
Max.Radial load(10mm from the shaft end)	≤150N
Max.shaft axial load	≤50N
Radial play of shaft (near to flange)	≤0.08mm
Axial play of shaft	≤0.4mm
Backlash at no-load	≤3°
Shaft press fit force,max	≤200N

product details

Outline reference diagram

Gear Ratio Parameter

Parameter		Stage2
Transmission efficiency		81%
Rated tolerance torque		5N.m
Input and output direction		Same direction
Max momentary tolerance torque		Two times of the rated torque
Operating temperature		-10℃ ~ +80℃
Operating ambient humidity		20% ~ 85%RH
Recommend input speed		≤3000rpm

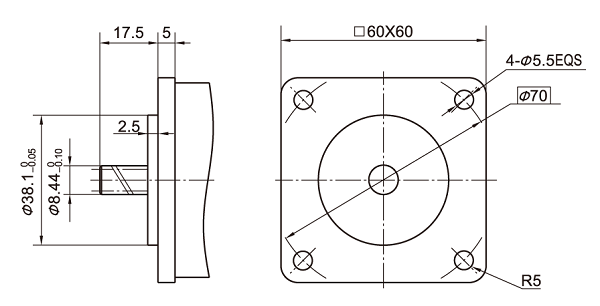

Motor matching scheme

	Module	No.of teeth	Stage2
	0.6	11	7.5
			15
