56JXL300K

Gear Ratio ParameterGear Ratio(mm) DimensionShaft teeth, starting structureCombined starting structu...

Housing material	Metal+Plastic helical
Bearing at output	Ball bearings
Max.Radialload(12mm from flange)	≤200N
Max.shaft axial load	≤100N
Radial play of shaft (near to flange)	≤0.04mm
Axial play of shaft	≤0.3 mm
Backlash at no-load	≤1.5°
Shaft press fit force, max	≤300N

product details

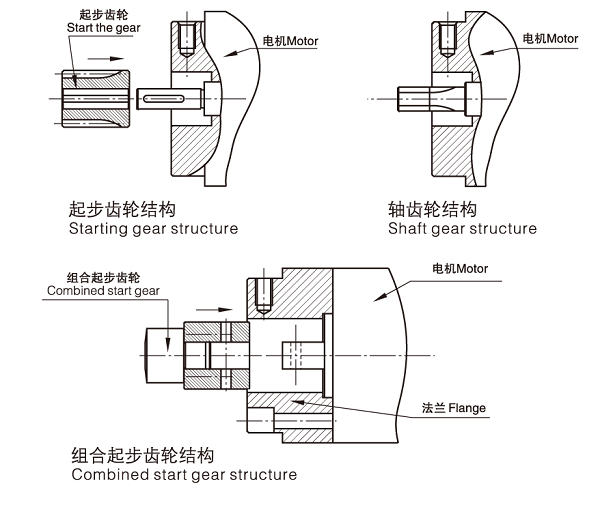

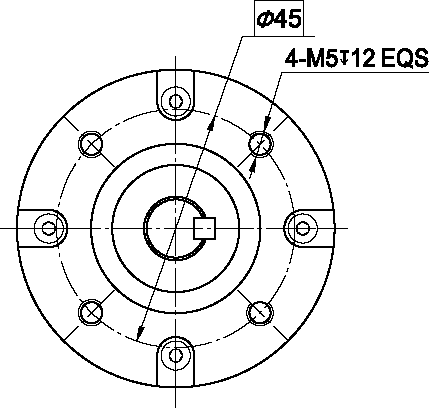

Outline reference diagram

Gear Ratio		(mm) Dimension
Gear Ratio		Shaft teeth, starting structure	Combined starting structure
Stage1	4.2 ~9	47	64
Stage2	15 ~38	59	72
Stage3	54 ~ 163	78	91
Stage4	196 ~ 691	90	103

Parameter	Stagel	Stage2	Stage3	Stage4
Transmission efficiency	90%	81%	73%	66%
Rated tolerance torque	3N.m	12N.m	20N.m	30N.m
Max momentary tolerance torque	Three times of the rated torque
Operating temperature	-10℃~ +80℃
Operating ambient humidity	20%~85%RH
Recommend input speed	≤4000rpm
Input and output direction	Same direction
