Brushless DC planetary gear reduction motor
-
42JX150K/42ZWNP66
Motor Technical Data
TYPE | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated current A | Output power W |
42ZWNP66-2430 | 10 | 3 | 24 | 3000 | 2550 | 80 | 1.1 | 21 |
Brushless Gear Motor Technical Data
42ZWNP66-2430 BLDC Motor
Reduction ratio | 3.5 | 14 | 21 | 49 | 84 | 104 | 126 | 156 | 172 | 196 | 212 | 294 |
Number of gear trains | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 32.5 | 39.2 | 39.2 | 46 | 46 | 46 | 46 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
No-load speed r/min | 857 | 214 | 143 | 61 | 36 | 29 | 24 | 19 | 17 | 15 | 14 | 10 |
Rated speed rAnin | 728 | 182 | 121 | 52 | 30 | 24 | 20 | 16 | 15 | 13 | 12 | 8 |
Rated torque N.m | 0.25 | 0.9 | 1.3 | 2.8 | 4.9 | 6.0 | 7.3 | 8.2 | 9.0 | 10.3 | 11.2 | 15.6 |
N.m Max. permissible load in a short time | 3 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 |

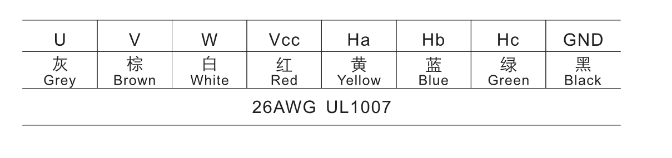

Wire Diagram
