90JW/JB/80ZY115

Description of The ProductMixed configuration, 1:10 eccentric shaft gearbox is equipped at the front...

Permanent magnet DC worm gear reduction motor
90JW/JB/80ZY115
Allowable torque range: 20 n.m

Online Contact

PDF Download

product details

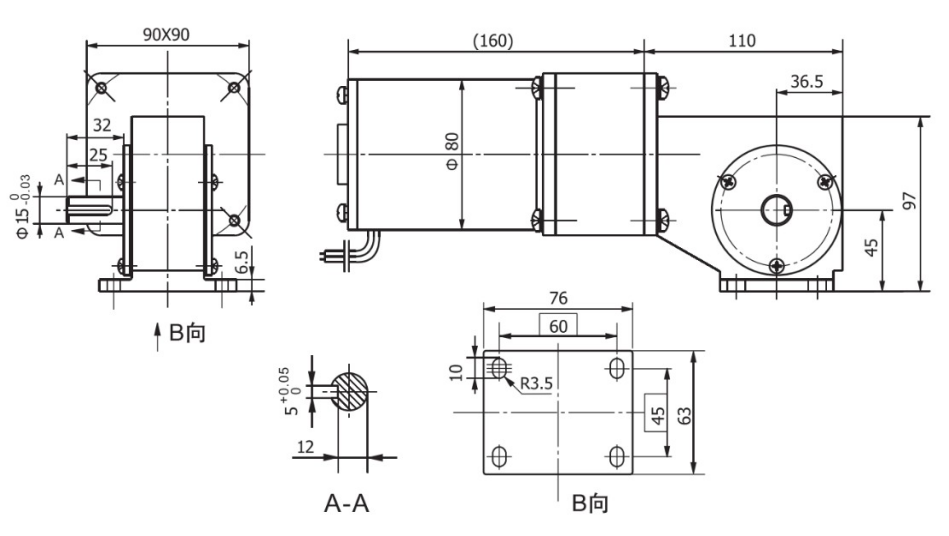

Outline reference diagram

Description of The Product

Mixed configuration, 1:10 eccentric shaft gearbox is equipped at the front of worm gearbox to increase total drive ratio and achieve lower speed. Total ratio equals to the product of the two gear ratios.

Motor Technical Data

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

Torque

mN.m

Output

power

W

Rated

current

A

Stall

torque

mN.m

Stall

Current

A

80ZY115-1225

12

2500

1.5

2000

0.4

84

10

1.5

30

Gear Motor Technical Data

80ZY115-1225 DC motor

Reduction ratio	125	160	250
Number of threads	2	2	1
No-load speed r/min	20	16	10
Rated speed r/min	16	13	8
Rated torque N.m	16	20	20
Permissible load N.m	40	40	40

说明：产品出厂时左出轴是常规配置，如要求右出轴需在订货时特别说明。

Remarks:Standard product is left output shaft, right output shaft is available upon request.
