90JW/83ZY125

Description of The Product1、All equipped with ball bearings, left, right or hollow output shaft are ...

Permanent magnet DC worm gear reduction motor
90JW/83ZY125
Allowable torque range: 20 n.m

Online Contact

PDF Download

product details

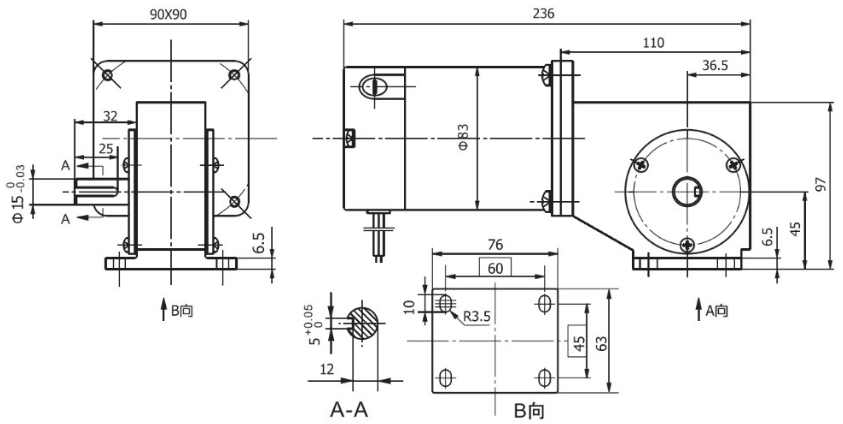

Outline reference diagram

Description of The Product

1、All equipped with ball bearings, left, right or hollow output shaft are available.

2、Customers can equip output shafts of different length, shape or directions within hollow shaft.

Motor Technical Data

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

Torque

mN.m

Output

power

W

Rated

current

A

Stall

torque

mN.m

Stall

Current

A

83ZY125-2420

24

2000

0.8

1700

0.24

42

3.5

1.6

17

83ZY125-2430

24

3000

0.9

2500

0.30

77

4.6

1.8

20

Gear Motor Technical Data

83ZY125-2420 DC Motor

Reduction ratio	50	40	32	25	16	12.5
Number of gear trains	1	1	1	1	2	2
No-load speed r/min	40	50	62	80	125	160
Rated speed r/min	30	37	46	60	93	120
Rated torque N.m	8.4	6.7	5.3	4.2	3.0	2.4
N.m Max. permissible load in a short time	20	20	20	20	10	10

83ZY125-2430 DC Motor

Reduction ratio	50	40	32	25	16	12.5
Number of gear trains	1	1	1	1	2	2
No-load speed r/min	60	75	93	120	187	240
Rated speed r/min	46	57	71	92	143	184
Rated torque N.m	10.5	8.4	6.7	5.2	3.8	3.0
N.m Max. permissible load in a short time	20	20	20	20	10	10
