104JB300K/80ZY125

Description of The Product104mm integrated gearbox, with rated torque up to 30.0 N.m, alloy construc...

Model: 104JB300K/80ZY125
Allowable torque range: 30 n.m
Silent product

Online Contact

PDF Download

product details

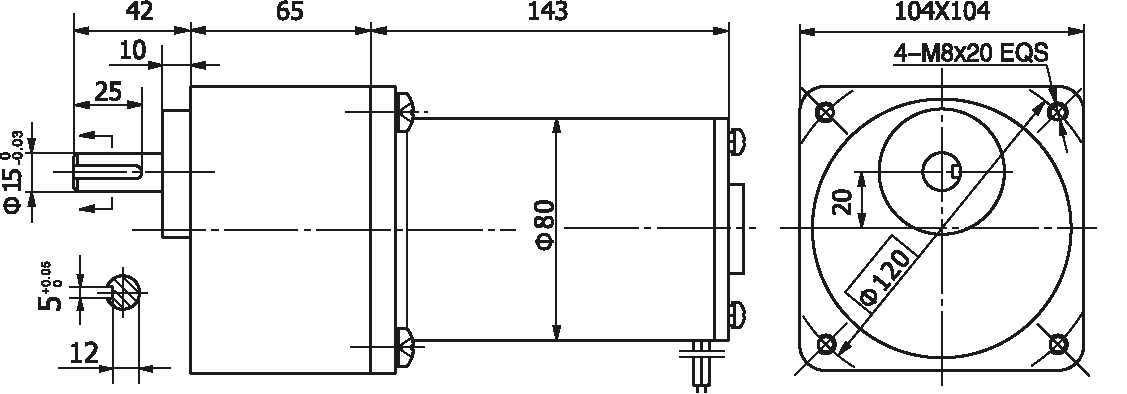

Outline reference diagram

Description of The Product

104mm integrated gearbox, with rated torque up to 30.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Date

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

Torque

N.m

Output

power

W

Rated

current

A

Stall

Torque

N.m

Stall

current

A

80ZY125-2420

24

2000

0.5

1700

0.64

110

6

2.9

27

80ZY125-2435

24

3500

1.2

3000

0.70

200

10

3.2

45

Gear Motor Technical Data

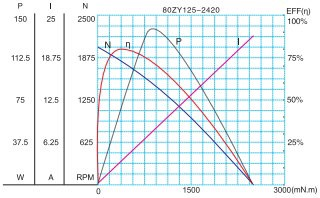

80ZY125-2420 DC Motor

Reduction ratio	3	5	7.5	10	12.5	20	25	30	50	75
Number of gear trains	2	2	2	3	3	3	3	3	4	4
Length(L) mm	65	65	65	65	65	65	65	65	65	65
No-load speed r/min	667	400	267	160	160	100	80	67	40	27
Rated speed r/min	567	340	227	136	136	85	68	57	34	23
Rated torque N.m	1.6	2.6	3.9	4.8	5.8	9.3	12	14	23	25
N.m Max. permissible load in a short time	10	10	10	30	30	30	30	30	60	60
Direction of rotation	CW	CW	CW	CCW	CCW	CCW	CCW	CCW	CW	CW

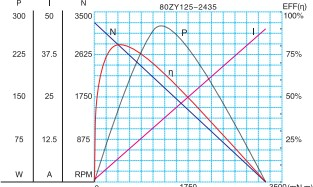

80ZY125-2435 DC Motor

Reduction ratio	3	5	7.5	10	12.5	20	25	30	50	75
Number of gear trains	2	2	2	3	3	3	3	3	4	4
Length(L) mm	65	65	65	65	65	65	65	65	65	65
No-load speed r/min	1167	700	467	350	280	175	140	117	70	47
Rated speed r/min	1000	600	400	300	240	150	120	100	60	40
Rated torque N.m	1.9	3.2	4.3	5.1	6.4	10	13	15	26	30
N.m Max. permissible load in a short time	10	10	10	30	30	30	30	30	60	60
Direction of rotation	CW	CW	CW	CCW	CCW	CCW	CCW	CCW	CW	CW
