37JB6K/35ZY30

Motor Technical DateTYPERated voltage VDCNo-load Speedr/minNo-load CurrentmARated speed r/...

Model: 37JB6K/35ZY30
Diameter: Φ37mm planetary reducer
Allowable torque range: 0.6N.m
Silent product

Online Contact

PDF Download

product details

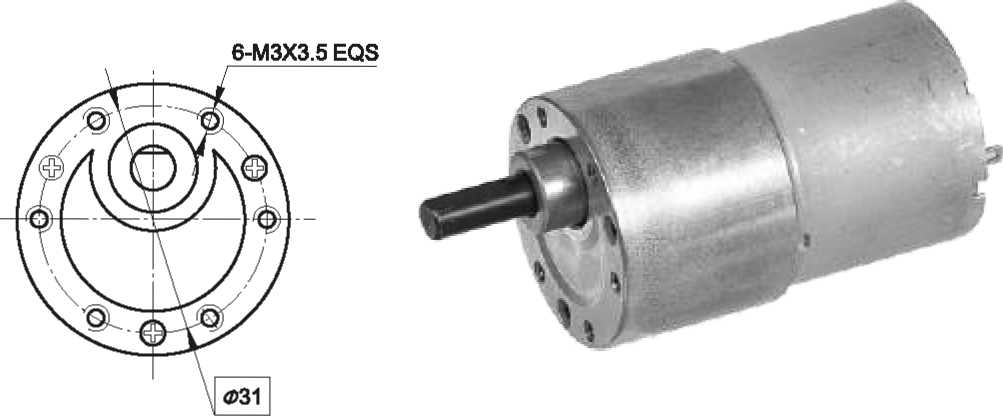

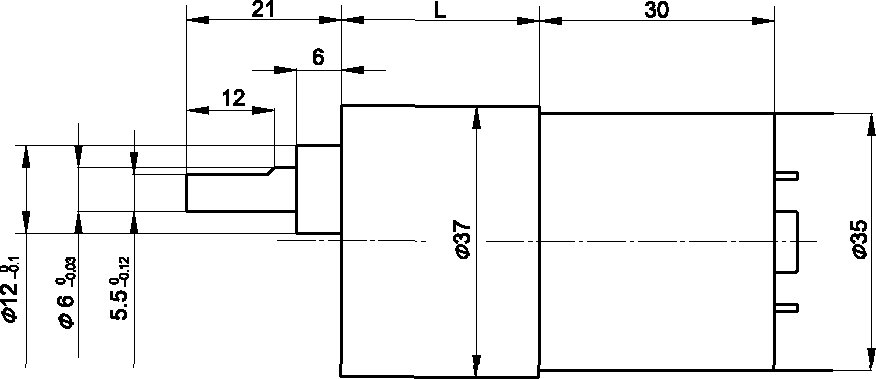

Outline reference diagram

Motor Technical Date

TYPE

Rated voltage

VDC

No-load Speed

r/min

No-load Current

mA

Rated speed

r/min

Rated torque

mN.m

Output power

W

Rated current mA

Stall Torque

mN.m

Stall current

A

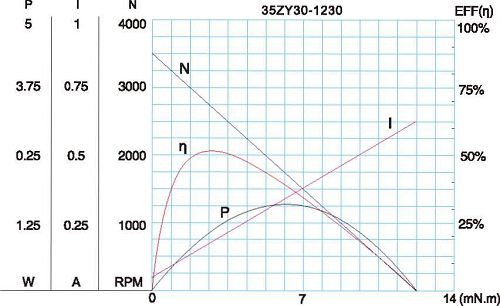

35ZY30-1230

12

3000

60

2400

5

1.2

280

12

0.56

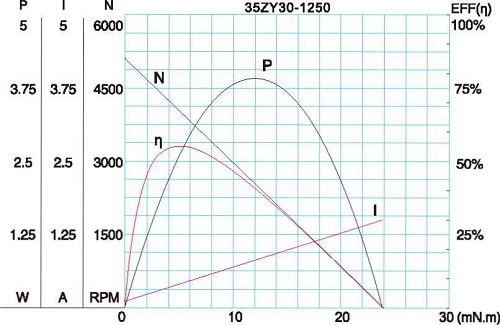

35ZY30-1250

12

5000

80

4300

4

1.8

330

24

1.20

Gear Motor Technical Data

35ZY30-1230 DC Motor

Reduction ratio	10	18	30	50	75	100	150	200	250	300	400	500	750	1000
Number of gear train	2	3	3	4	4	4	5	5	5	5	6	6	6	6
Length(L) mm	19	21.5	21.5	24	24	24	26.5	26.5	26.5	26.5	29	29	29	29
No-load speed r/min	300	167	100	60	40	30	20	15	12	10	7.5	6	4	3
Rated speed r/min	240	133	80	48	32	24	16	12	10	9	7	5	3.2	2.4
Rated torque N.m	0.04	0.07	1.11	0.16	0.24	0.33	0.44	0.59	0.6	0.6	0.6	0.6	0.6	0.6
N.m Max. permissible load in a short time	0.3	0.6	0.6	1.2	1.2	1.2	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Direction of rotation	CCW	CW	CW	CCW	CCW	CCW	CW	CW	CW	CW	CCW	CCW	CCW	CCW

35ZY30-1250 DC Motor

Reduction ratio	10	18	30	50	75	100	150	200	250	300	400	500	750	1000
Number of gear train	2	3	3	4	4	4	5	5	5	5	6	6	6	6
Length(L) mm	19	21.5	21.5	24	24	24	26.5	26.5	26.5	26.5	29	29	29	29
No-load speed r/min	500	278	167	100	67	50	33	25	20	16	12	10	6.6	5.0
Rated speed r/min	430	239	143	86	57	43	29	22	17	14	11.3	9.2	6.3	4.8
Rated torque N.m	0.04	0.05	0.10	0.16	0.22	0.29	0.44	0.58	0.6	0.6	0.6	0.6	0.6	0.6
N.m Max. permissible load in a short time	0.3	0.6	0.6	1.2	1.2	1.2	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Direction of rotation	CCW	CW	CW	CCW	CCW	CCW	CW	CW	CW	CW	CCW	CCW	CCW	CCW
