Description of The Product

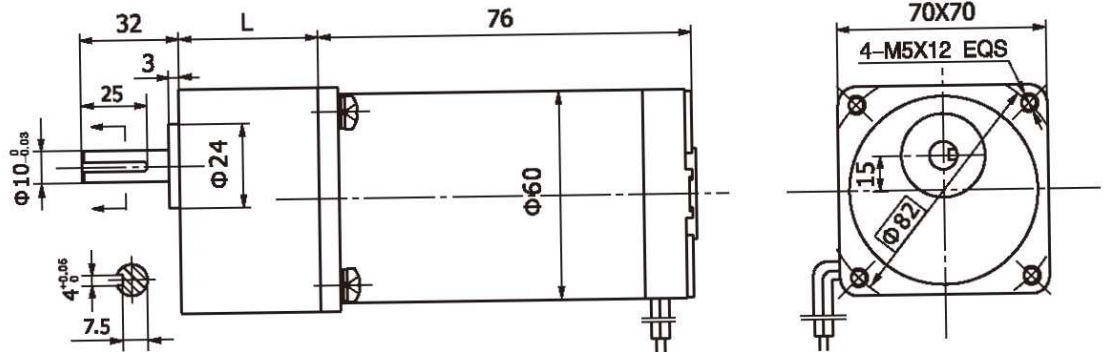

70mm integrated gearbox, with rated torque up to 8.0 N.m, alloy constructional steel gears, all equipped with ball bearings.
Motor Technical Date
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall Current A |
60ZY75-2420 | 24 | 2000 | 0.3 | 1600 | 50 | 8 | 0.8 | 215 | 2.1 |
60ZY75-2430 | 24 | 3000 | 0.4 | 2400 | 70 | 17 | 1.2 | 296 | 5.0 |
60ZY75-2440 | 24 | 4000 | 0.5 | 3200 | 90 | 30 | 2.2 | 404 | 8.5 |
Gear Motor Technical Data
60ZY75-2420 DC Motor
Reduction ratio | 75 | 90 | 100 | 120 | 150 |
Number of gear trains | 4 | 4 | 4 | 4 | 4 |
No-load speed r/min | 27 | 22 | 20 | 17 | 13 |
Rated speed r/min | 21 | 17 | 16 | 13 | 10 |
Rated torque N.m | 2.7 | 3.2 | 3.6 | 4.3 | 5.0 |
N.m Max. permissible load in a short time | 16 | 16 | 16 | 16 | 16 |
Direction of rotation | CW | CW | CW | CW | CW |
60ZY75-2430 DC Motor
Reduction ratio | 75 | 90 | 100 | 120 | 150 |
Number of gear trains | 4 | 4 | 4 | 4 | 4 |
No-load speed r/min | 40 | 33 | 30 | 25 | 20 |
Rated speed r/min | 32 | 26 | 24 | 20 | 16 |
Rated torque N.m | 3.4 | 4.1 | 4.6 | 5.5 | 6.9 |
N.m Max. permissible load in a short time | 16 | 16 | 16 | 16 | 16 |
Direction of rotation | CW | CW | CW | CW | CW |

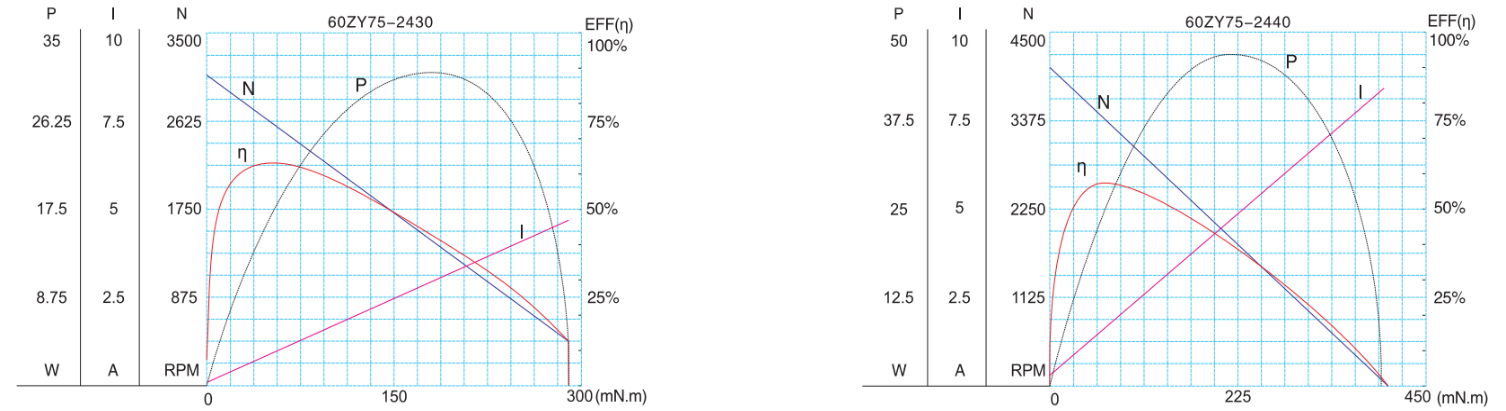

Motor Characteristic Figure
