42JXG50K/42BL60

Brushless Motor Technical DataTYPENumber of poles Number of phaseRated Voltage VDCNo-load ...

Material of the internal gear ring
42JXG50K/42BL60: Metal material
Diameter: Φ42mm planetary reducer
Allowable torque range: 0.5N.m to 5.0N.m

Online Contact

PDF Download

product details

Outline reference diagram

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power

W

Reak Torque

mN.m

Peak Current A

Line to line resistance

ohms

Line to line inductance

mH

42BL60-2440

10

3

24

4000

3000

160

50

650

11.8

1.1

0.96

Brushless Gear Motor Technical Data

42BL60-2440 BLDC Motor

Reduction ratio	3.8	4.9	15	19	24
Number of gear trains	1	1	2	2	2
Lengh(L) mm	35.2	35.2	45.7	45.7	45.7
No-lod speed r/min	1047	820	267	211	167
Rated speed r/min	785	615	200	158	125
Rated torque N.m	0.55	0.70	1.9	2.5	3
N.m Max. permissible load in a short time	1.5	1.5	6	6	6

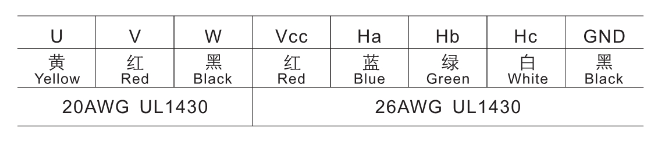

Wire Diagram
