Current Location： Home - Product Center - Brushless DC planetary gear reduction motor - 60JB50K/57ZWN75
60JB50K/57ZWN75
Brushless Motor Technical DataTYPERated VoltageVDCNo-load Speedr/minNo-load CurrentARated Speed...

60JB standard type reducer

Allowable torque range: 2 n.m to 5 n.m


Online Contact PDF Download
product details

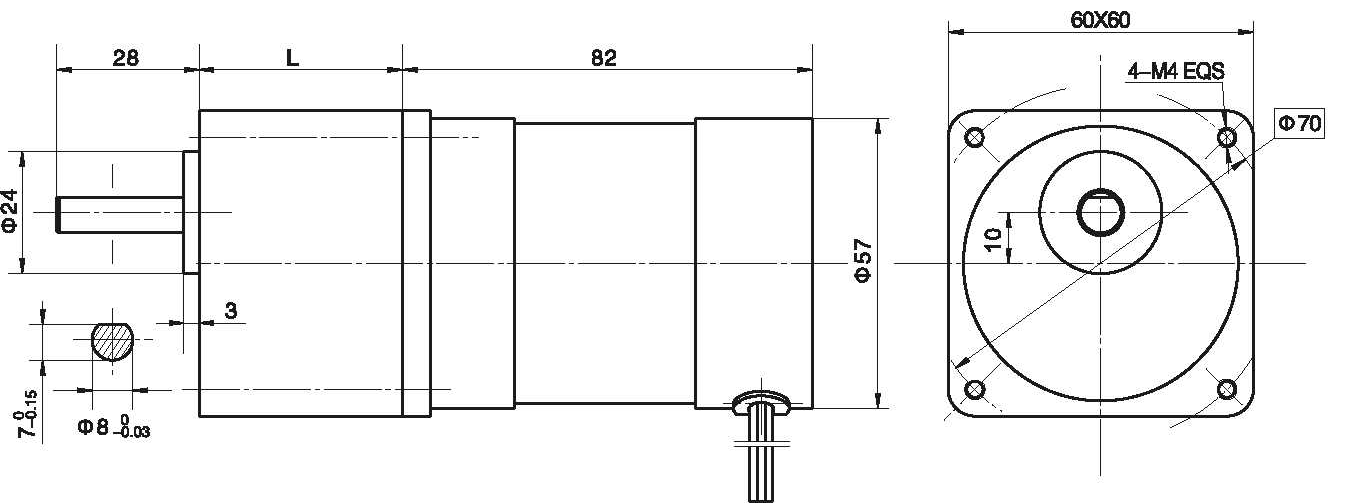

Outline reference diagram

  • Brushless Motor Technical Data

TYPE

Rated Voltage

VDC

No-load Speed

r/min

No-load Current

A

Rated Speed

r/min

Rated Torque

mN.m

Output power

W

Rated Current

A

57ZWN75-2420

24

2000

450

1200

300

40

2.8

57ZWN75-2430

24

3000

400

2000

300

60

4.0


  • Brushless Gear Motor Technical Data

57ZWN75-2420 BLDC Motor

Reduction ratio

3

5

7.5

10

12.5

15

25

30

Number of gear trains

2

2

2

2

2

2

3

3

Lengh(L) mm

32

32

32

32

32

32

40

40

No-lod speed r/min

667

400

267

200

160

133

80

67

Rated speed r/min

400

240

160

120

96

80

48

40

Rated torque N.m

0.72

1.2

1.8

2.4

3.0

3.6

5.0

5.0

N.m Max. permissible load in a short time

2.5

2.5

2.5

2.5

2.5

2.5

5.0

5.0

57ZWN75-2430 BLDC Motor

Reduction ratio

3

5

7.5

10

12.5

15

25

30

Number of gear trains

2

2

2

2

2

2

3

3

Lengh(L) mm

32

32

32

32

32

32

40

40

No-lod speed r/min

1000

600

400

300

240

200

120

100

Rated speed r/min

667

400

267

200

160

133

80

67

Rated torque N.m

0.72

1.2

1.8

2.4

3.0

3.6

5.0

5.0

N.m Max. permissible load in a short time

2.5

2.5

2.5

2.5

2.5

2.5

5.0

5.0
