Description of The Product

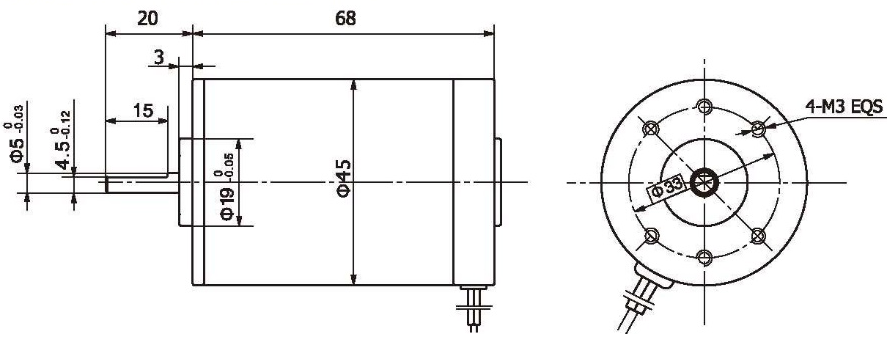

45MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.
Motor Technical Data
Type | Rated Voltage DVC | No-load speed r/min | No-load current A | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall Torque mN.m | Stall Current A |
45ZY68-2430 | 24 | 3000 | 0.2 | 2500 | 45 | 12 | 0.8 | 190 | 2.7 |
45ZY68-2440 | 24 | 4000 | 0.3 | 3200 | 55 | 18 | 1.2 | 195 | 3.0 |
