Description of The Product

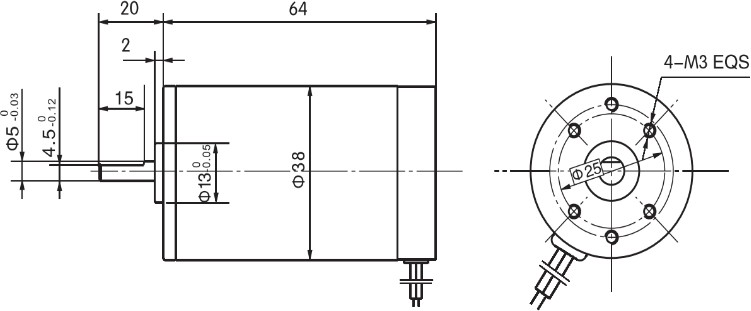

38MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.
Motor Technical Data
Type | Rated Voltage DVC | No-load speed r/min | No-load current A | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall Torque mN.m | Stall Current A |
38ZY63-2430 | 24 | 3000 | 160 | 2400 | 15 | 3.8 | 0.35 | 65 | 1.0 |
38ZY63-2440 | 24 | 4000 | 220 | 3200 | 20 | 6.5 | 0.60 | 90 | 2.0 |
