Description of The Product

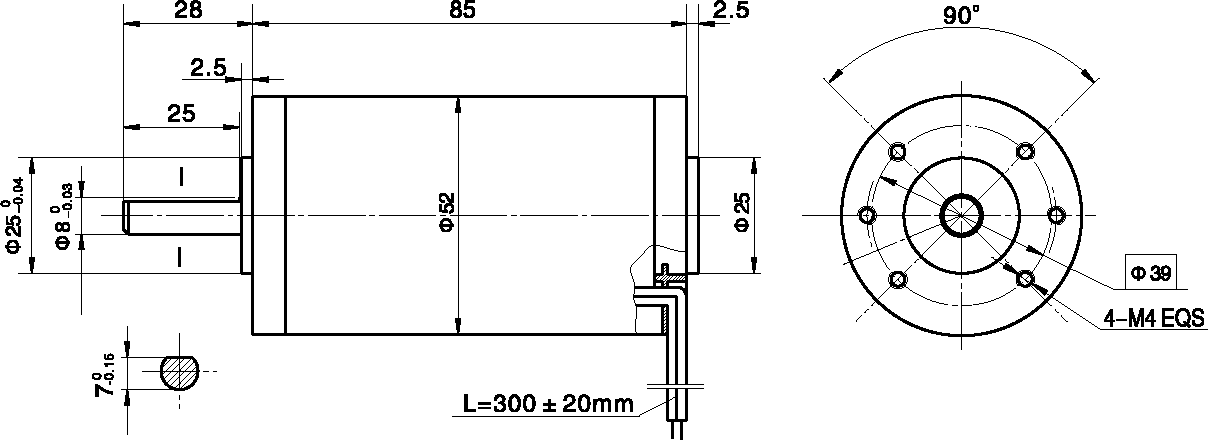

52MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.
Motor Technical Data
TYPE | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current A | Stall torque mN.m | Stall current A |
52ZY85-2420 | 24 | 2000 | 0.25 | 1600 | 60 | 10 | 0.9 | 260 | 5.0 |
52ZY85-2430 | 24 | 3000 | 0.35 | 2400 | 75 | 18 | 1.5 | 320 | 6.0 |
52ZY85-2440 | 24 | 4000 | 0.42 | 3200 | 80 | 27 | 2.0 | 446 | 7.5 |
