• 产Description of The Product

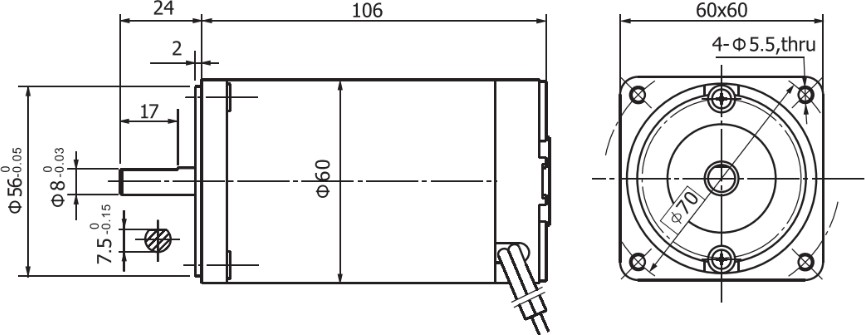

60MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

• Motor Technical Data

  TYPE	Rated  voltage  VDC	No-load speed r/min	No-load  current A	Rated  Speed  r/min	Rated  torque  mN.m	Output  Power W	Rated  current A	Stall  torque  mN.m	Stall  Current A
  60ZY105-2420	24	2000	0.25	1600	165	30	1.8	760	7.3
  60ZY105-2430	24	3000	0.35	2400	180	45	2.2	790	11.2
  60ZY105-2450	24	5000	0.50	4000	230	90	6.0	920	15.5
