37JBE10K/36ZY50

Motor Technical DateTYPERated voltage VDCNo-loadSpeed r/minNo-load current mARat...

Model: 37JBE10K/36ZY50
Diameter: Φ37mm planetary reducer
Allowable torque range: 1.0N.m
Silent product

Online Contact

PDF Download

product details

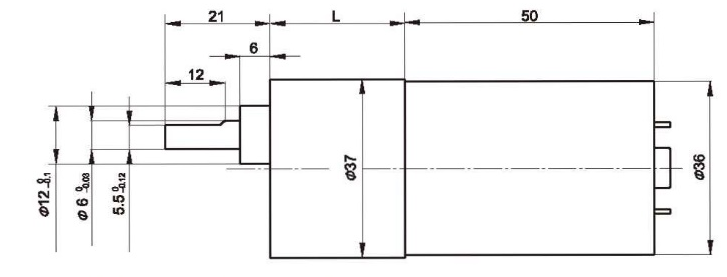

Outline reference diagram

Motor Technical Date

TYPE

Rated

voltage

VDC

No-load

Speed r/min

No-load

current

mA

Rated

Speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

Torque

mN.m

Stall

current

A

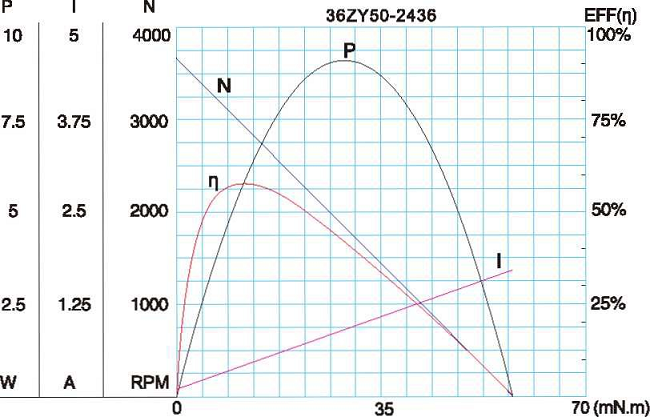

36ZY50-2436

24

3600

100

3000

11

3.4

0.40

58

1.7

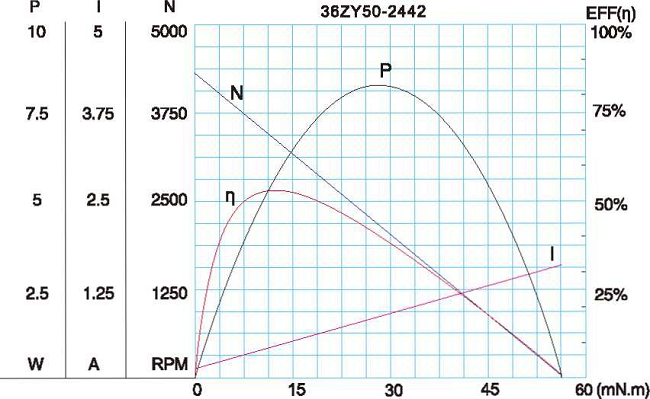

36ZY50-2442

24

4200

120

3450

12

4.2

0.43

52

1.6

Gear Motor Technical Data

36ZY50-2436 DC Motor

Reduction ratio	6	10	18	30	50	75	100	150	200	250
Number of gear trains	2	2	3	3	4	4	4	5	5	5
Length(L) mm	21.5	21.5	26.5	26.5	29	29	29	31.5	31.5	31.5
No-load speed r/min	600	360	200	120	72	48	36	24	18	14
Rated speed r/min	500	300	167	100	60	40	30	20	15	12
Rated torque N.m	0.06	0.09	0.14	0.24	0.40	0.50	0.67	1	1	1
N.m Max. permissible load in a short time	0.5	0.5	1	1	2	2	2	3	3	3
Direction of rotation	CCW	CCW	CW	CW	CCW	CCW	CCW	CW	CW	CW

36ZY50-2442 DC Motor

Reduction ratio	6	10	18	30	50	75	100	150	200	250
Number of gear trains	2	2	3	3	4	4	4	5	5	5
Length(L) mm	21.5	21.5	26.5	26.5	29	29	29	31.5	31.5	31.5
No-load speed r/min	700	420	233	140	84	56	42	28	21	17
Rated speed r/min	583	350	194	117	70	47	35	23	18	14
Rated torque N.m	0.06	0.10	0.16	0.26	0.42	0.55	0.73	1	1	1
N.m Max. permissible load in a short time	0.5	0.5	1	1	2	2	2	3	3	3
Direction of rotation	CCW	CCW	CW	CW	CCW	CCW	CCW	CW	CW	CW
